• Country
• Great Britain (UK)

• Manufacturer / Brand
• Ferguson (Brand), Ferguson Radio Corporation Ltd., British Radio Corporation Ltd.; London

• Year
• 1938

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 196491

• • Brand: TRF

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• 6A8G 6U7G 6Q7G 6C5G 6G5 6V6G 6V6G 5Y3G

• Main principle
• Superheterodyne (common); ZF/IF 465 kHz

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 200-250 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 8 inch = 20.3 cm

• Material
• Wooden case

• from Radiomuseum.org
• Model: 702 - Ferguson Brand, Ferguson Radio

• Shape
• Tablemodel with Push Buttons.

• Notes

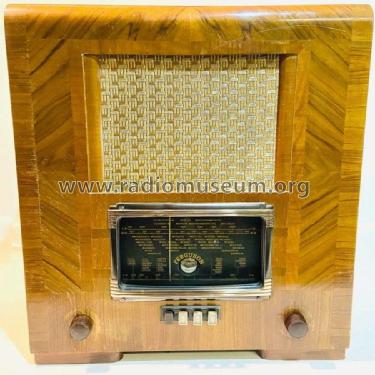

• An AC mains 3 band table radio housed in a wooden cabinet. Press buttons for waveband change, magic eye and provision for gramophone pickup and extension speaker.

  Released August 1938. The same chassis is fitted to the Ferguson 705 radiogram.

• Literature/Schematics (1)
• Trader Service Sheet (suppl. of Wireless & El. Trader, etc.) (383 dated Feb 11 1939)

• Author
• Model page created by Howard Craven. See "Data change" for further contributors.
