• Country
• Great Britain (UK)

• Manufacturer / Brand
• Ferguson (Brand), Ferguson Radio Corporation Ltd., British Radio Corporation Ltd.; London

• Year
• 1938

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 172582

• • Brand: TRF

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• 6A8G 6U7G 6Q7G or 6R7G 6C5G 6G5 6V6G 6V6G 5Y3

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave and 2 x Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 200-215; 220-230; 240-250 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 20 cm = 7.9 inch

• Material
• Wooden case

• from Radiomuseum.org

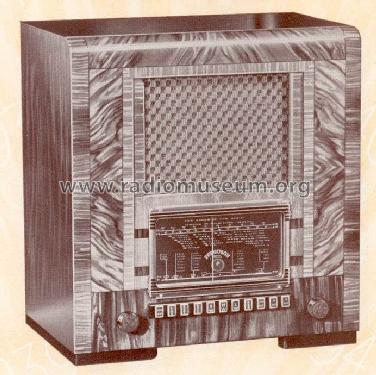

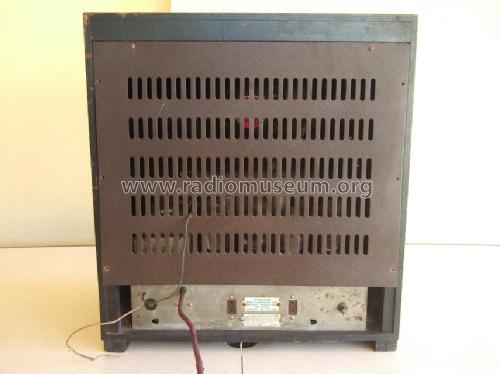

• Model: 772 - Ferguson Brand, Ferguson Radio

• Shape
• Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.

• Dimensions (WHD)
• 430 x 460 x 250 mm / 16.9 x 18.1 x 9.8 inch

• Notes
• Press-button tuning.

• Literature/Schematics (1)
• Trader Service Sheet 363

• Author
• Model page created by Diego Fernandez-Fernandez. See "Data change" for further contributors.
