• Country
• Great Britain (UK)

• Manufacturer / Brand
• Ferguson (Brand), Ferguson Radio Corporation Ltd., British Radio Corporation Ltd.; London

• Year
• 1938

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 201823

• • Brand: TRF

• Number of Tubes
• 12

• Valves / Tubes
• 6K7G 6L7G 6C5G 6K7G 6G5 6H6G 6C5G 6C5G 6V6G 6V6G 6J7G 5Y3G

• Main principle
• Superhet with RF-stage; ZF/IF 465 kHz

• Wave bands
• Broadcast, Long Wave and more than two Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC)

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 10 inch = 25.4 cm

• Material
• Wooden case

• from Radiomuseum.org
• Model: 773 - Ferguson Brand, Ferguson Radio

• Shape

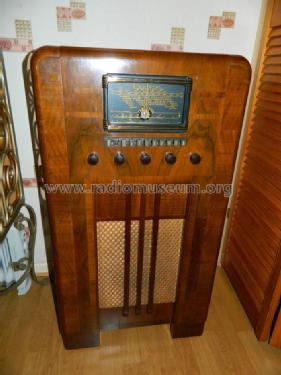

• Console with Push Buttons.

• Notes
• Console with motorised tuning. One of the short wave bands was used for television sound reception from Alexandra Palace.

• Price in first year of sale
• 21.00 GBP

• Source of data
• -- Original prospect or advert

• Author
• Model page created by Mike Izycky. See "Data change" for further contributors.
