- Country
- Great Britain (UK)
- Manufacturer / Brand
- Ferguson (Brand), Ferguson Radio Corporation Ltd., British Radio Corporation Ltd.; London
- Year
- 1951
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 196513
-
- Brand: TRF

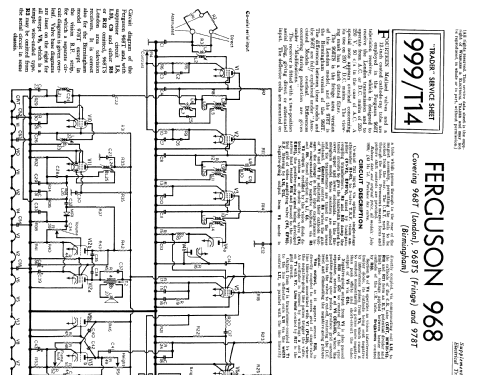

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 15
- Valves / Tubes
- EF80 EF80 EF80 EB91 EF80 EF80 EBF80 ECL80 PY31 PL38 EY51 ECL80 ECL80 PZ30 MW31-18 or MW31-16
- Main principle
- TRF (Tuned-Radio-Frequency but use of regeneration unknown)
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- AC/DC-set / 200-250 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 968TS - Ferguson Brand, Ferguson Radio
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 450 x 400 x 405 mm / 17.7 x 15.7 x 15.9 inch
- Notes
- 12 inch (29 cm) 405 lines b/w TV with GB standard VHF band I tuner for London fringe area. See also the 968T model for London (within 30 miles of the Alexandra Palace transmitter), and the 978T model for Birmingham frequencies.
- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Howard Craven. See "Data change" for further contributors.
