• Country
• Great Britain (UK)

• Manufacturer / Brand
• Ferguson (Brand), Ferguson Radio Corporation Ltd., British Radio Corporation Ltd.; London

• Year
• 1965 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 103100

• • Brand: TRF

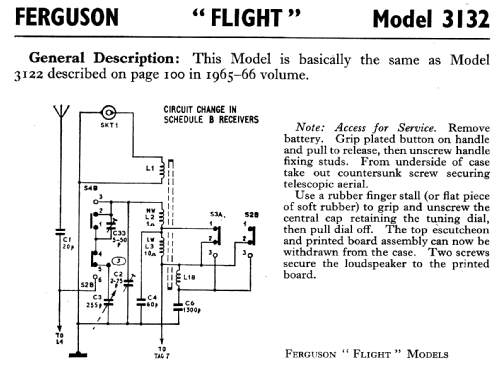

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 7

• Semiconductors
• AF115 AF117 AF117 OC71 or. AC155 OC81D or. AC113 OC81 or. AC154 AC127 or. AC157

• Main principle
• Superheterodyne (common); ZF/IF 475 kHz; 3 AF stage(s)

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Dry Batteries / PP6: 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 0.3 W (unknown quality)

• from Radiomuseum.org

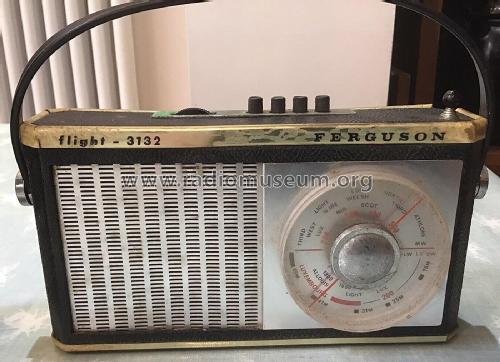

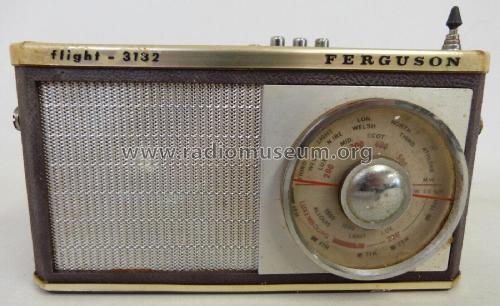

• Model: Flight 3132 - Ferguson Brand, Ferguson Radio

• Shape
• Portable set > 8 inch (also usable without mains)

• Notes

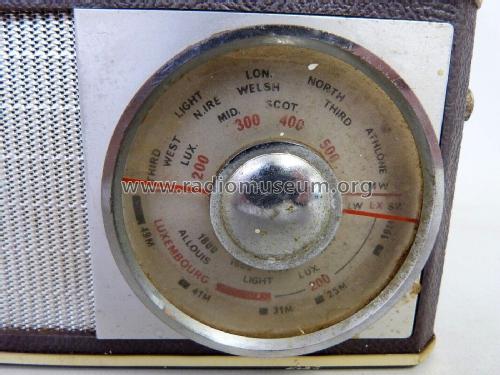

• A battery portable seven transistor radio covering LW (1120-2050 metres), MW (185-565 metres), SW (17.6-51 metres) and Bandspread covering the high frequency end of MW (180-214 metres) centred on Radio Luxembourg (208 metres).  Early production uses the same circuit as the Ferguson 3122 Flight model. Later production (Schedule B) uses a different RF circuit. Sockets for a car aerial and for an earphone or tape recorder.

• Mentioned in
• -- Original-techn. papers.

• Literature/Schematics (1)
• Trader Service Sheet (suppl. of Wireless & El. Trader, etc.) (1738 dated 28 January 1966)

• Literature/Schematics (2)
• Radio And Television Servicing books (R&TVS)

• Author
• Model page created by Peter Hoddow. See "Data change" for further contributors.
