- Country
- Great Britain (UK)
- Manufacturer / Brand
- Ferguson (Brand), Ferguson Radio Corporation Ltd., British Radio Corporation Ltd.; London
- Year
- 1965 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 103101
-
- Brand: TRF
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 8
- Main principle
- Superheterodyne (common); ZF/IF 475 kHz
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Dry Batteries / 9 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Power out
- 0.65 W (unknown quality)
- from Radiomuseum.org
- Model: Freelance 3136 - Ferguson Brand, Ferguson Radio
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 12.5 x 6.88 x 2.75 inch / 318 x 175 x 70 mm
- Notes
-
A seven transistor battery portable radio, MW, LW and 'Luxembourg' bandspread (185 - 216 metres MW). Sockets for earphone, tape recorder and car aerial. PP9 battery. Price 15 gns. Eliptical loudspeaker 6 x 4 inch.
- Price in first year of sale
- 15.75 GBP
- Mentioned in
- -- Original-techn. papers.
- Literature/Schematics (1)
- - - Manufacturers Literature (Ferguson Service Manual)
- Literature/Schematics (2)

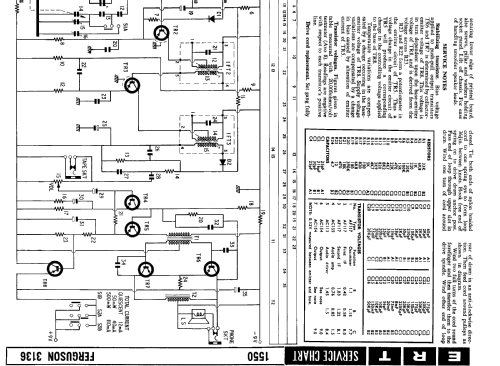

- ERT Service Chart 1550 dated July 14 1966
- Author
- Model page created by Peter Hoddow. See "Data change" for further contributors.
