Model Eight 8 Console

Ferguson (in the United States - see text)

Data
Forum
Pictures
Collections

  • Year
  • 1926
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 227017
    • alternative name: Ferguson Co., J.B. || Ferguson Radio Corp. || Ferguson Radio &Television Co., Inc.

 Technical Specifications

  • Number of Tubes
  • 6
  • Valves / Tubes
  • Main principle
  • TRF without regeneration; 3 AF stage(s)
  • Tuned circuits
  • 3 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Storage and/or dry batteries
  • Loudspeaker
  • -Loudspeaker incorporated, but system not known.
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Model Eight 8 [Console] - Ferguson in the United States
  • Shape
  • Console, Lowboy (legs < 50 %).
  • Notes

  • Single dial control. The Model Eight used the identical circuit as used in the Model Six but tuning control was reduced to a single knob.

  • Price in first year of sale
  • 348.00 USD
  • Literature/Schematics (1)

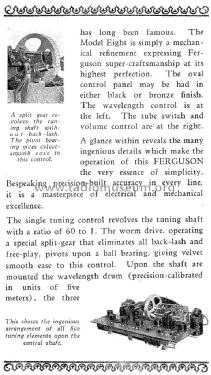

  • Circa 1926 Ferguson advertising brochure
  • Literature/Schematics (2)
  • Radio Broadcast, May 1926, p. 28
  • Author
  • Model page created by Alan Larsen. See "Data change" for further contributors.
