Quadro-Sound 3482

Ferguson (Brand), Ferguson Radio Corporation Ltd., British Radio Corporation Ltd.; London

Data
Forum
Pictures
Collections

  • Year
  • 1972
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 201127
    • Brand: TRF

Click on the schematic thumbnail to request the schematic as a free document.

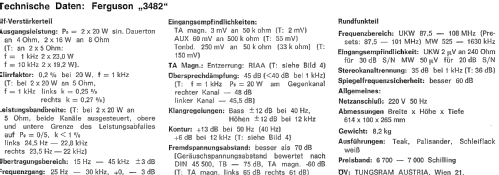

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 40 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org

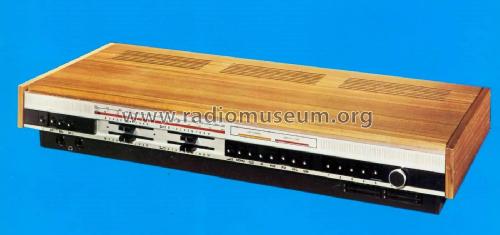

  • Model: Quadro-Sound 3482 - Ferguson Brand, Ferguson Radio
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 614 x 100 x 265 mm / 24.2 x 3.9 x 10.4 inch
  • Notes

  • A 2 band AM/FM receiver with pseudo-quadphonic sound.  Amplifier section: output power 2 x 20 watts (sine continuous tone) at 4 ohms; 2 x 16 watts at 8 ohms. Frequency response 25Hz-30 kHz. Pickup magn. (RIAA) 3 mV at 50 k ohms; Aux 60 mV at 500 k ohm; Tape 250 mV at 50 k ohm. Versions in teak, rosewood or white lacquer.

    Steuergerät mit Pseudo-Quadrofonieteil. NF-Verstärkerteil: Ausgangsleistung 2 x 20 Watt (sinus Dauerton) an 4 Ohm; 2 x 16 Watt an 8 Ohm. Frequenzgang 25 Hz...30 kHz. Tonabnehmer magn. (RIAA) 3 mV an 50 k ohm; Aux 60 mV an 500 k ohm; Tonband 250 mV an 50 k ohm. Ausführungen in Teak, Palisander oder Schleiflack weiß. Preis in Österreich ATS 7000.-

  • Net weight (2.2 lb = 1 kg)
  • 8.2 kg / 18 lb 1 oz (18.062 lb)
  • Author
  • Model page created by Museum Roggenhofer. See "Data change" for further contributors.
