• Country
• Germany

• Manufacturer / Brand
• Fernfunk, Gesellschaft für drahtlose Telefonie mbH; Berlin

• Year
• 1928–1930

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 14532

• • Brand: GRB, Ges. für Radiobedarf mbH

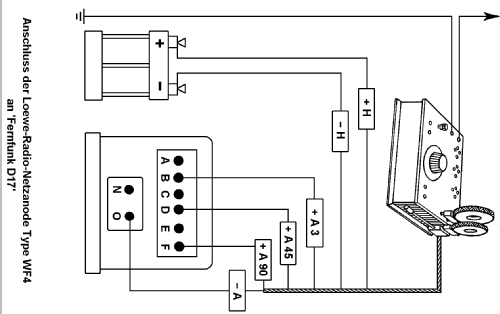

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• RE034 RE034 RE134

• Main principle
• TRF with regeneration; 2 AF stage(s)

• Tuned circuits
• 1 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Storage and/or dry batteries / 4 & 3 & 70 & 90 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Wooden case, TUBES VISIBLE.

• from Radiomuseum.org

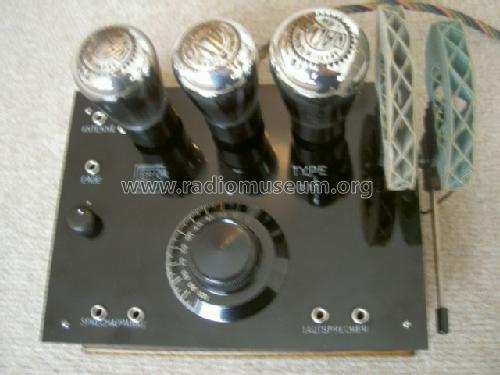

• Model: D17 - Fernfunk, Gesellschaft für

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 250 x 90 x 170 mm / 9.8 x 3.5 x 6.7 inch

• Notes
• Tischgerät, Box. Mit Sprechmaschinenanschluss (Plattenspieler)

• Net weight (2.2 lb = 1 kg)
• 1.8 kg / 3 lb 15.4 oz (3.965 lb)

• Price in first year of sale
• 40.00 RM !

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• - - Data from my own collection / Radiokatalog Band 2, Ernst Erb

• Circuit diagram reference
• Röhren in FS-Bestückungstabellen

• Mentioned in
• Der Radio-Händler / Der Rundfunk-Händler (ab Jan. 1939) (2920)
