• Country
• Germany

• Manufacturer / Brand
• Fern, Radio-, GmbH, Essen

• Year
• 1962

• Category
• Kit (Parts plus instruction) or building instructions only

• Radiomuseum.org ID
• 175996

• • Brand: Radio FERN El

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 2

• Semiconductors

• Main principle
• TRF without regeneration; 1 AF stage(s); Reflex

• Tuned circuits
• 1 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Storage and/or dry batteries / 3 Volt

• Loudspeaker
• - only for Earphone!

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

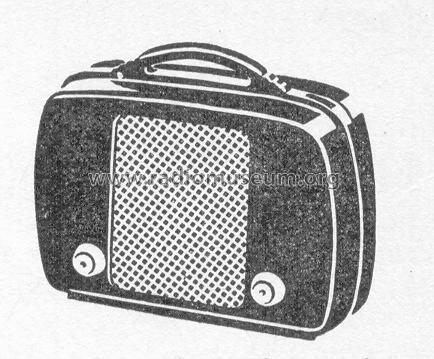

• Model: Einkreis-Reflex - Fern, Radio-, GmbH, Essen

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 90 x 65 x 35 mm / 3.5 x 2.6 x 1.4 inch

• Price in first year of sale
• 25.00 DM

• Literature/Schematics (1)
• Transistor-Bauheft 1962 Radio FERN, Essen

• Author
• Model page created by Peter von Bechen † 15.7.19. See "Data change" for further contributors.
