HiFi-Tuner 506 Ch=REMA HiFi Tuner Motiv mit Tuner Motiv 838 HiFi bis 108 MHz
Fernseh-Radio Berlin (FERA), PGH; (Ostd)
- Country
- Germany
- Manufacturer / Brand
- Fernseh-Radio Berlin (FERA), PGH; (Ostd)
- Year
- 1978 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 326900
- Number of Transistors
- 16
- Semiconductors
- Main principle
- Superheterodyne (common); ZF/IF 460/10700 kHz
- Tuned circuits
- 7 AM circuit(s) 16 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Wooden case
- from Radiomuseum.org

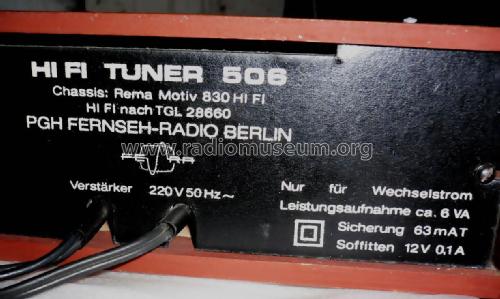

- Model: HiFi-Tuner 506 Ch=REMA HiFi Tuner Motiv [mit Tuner Motiv 838 HiFi bis 108 MHz] - Fernseh-Radio Berlin FERA, PGH
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 430 x 100 x 255 mm / 16.9 x 3.9 x 10 inch
- Notes
-
Komponente zum Verstärker HiFi 50 Quadro-Effekt; UKW-AFC schaltbar, Stereo-Decoder SD 2.1 oder SD 2.3.
Modellvariante des HiFi-Tuner 506 mit auf 108 MHz erweitertem Rema-Tuner HiFi Motiv, der für den Westexport vorgesehen war.
Mindestens im Jahr 1981 nachweislich aber auch in RFT-Filalen der DDR ohne eingebaute Einschränkungen der Empfangsmöglichkeiten über 100 MHz hinaus verkauft..
- Net weight (2.2 lb = 1 kg)
- 3.7 kg / 8 lb 2.4 oz (8.15 lb)
- Price in first year of sale
- 680.00 Mark
- Mentioned in
- - - Manufacturers Literature (Original-Garantieurkunde des Chassisherstellers REMA)
- Author
- Model page created by Klaus-Hartwig Müller. See "Data change" for further contributors.
