• Country
• Great Britain (UK)

• Manufacturer / Brand
• Ferranti, GB

• Year
• 1945

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 141176

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6A8 6K7 6Q7 6V6 6X5

• Main principle
• Superheterodyne (common); ZF/IF 465 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt

• from Radiomuseum.org

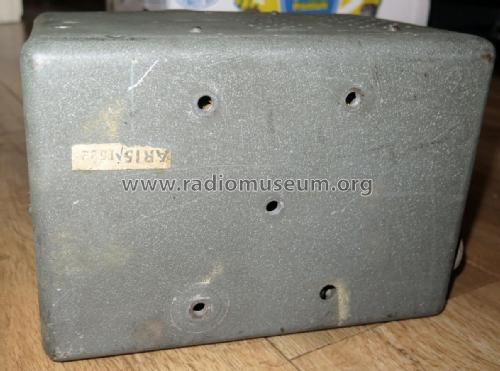

• Model: AR15 - Ferranti, GB

• Source of data
• -- Schematic

• Circuit diagram reference
• Radio and TV Servicing books (R&TVS) book

• Literature/Schematics (1)
• R&TVS. Vol I (1953), page 224.

• Author
• Model page created by Keith Staines. See "Data change" for further contributors.
