AM/FM Stereophonic Radiogram SRG1090
Ferranti, GB
- Country
- Great Britain (UK)
- Manufacturer / Brand
- Ferranti, GB
- Year
- 1962
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 167622

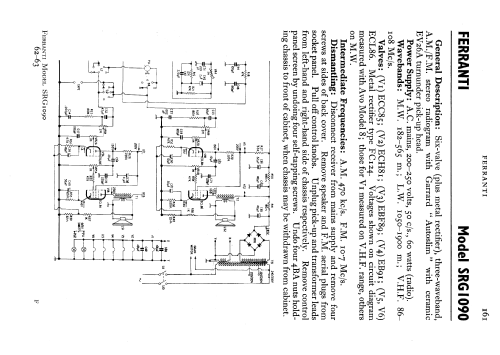

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 470/10700 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s) 8 FM circuit(s)
- Wave bands
- Broadcast, Long Wave and FM or UHF.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 200-250 Volt
- Loudspeaker
- 2 Loudspeakers
- Power out
- 6 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: AM/FM Stereophonic Radiogram SRG1090 - Ferranti, GB
- Shape
- Console, Lowboy (legs < 50 %).
- Notes
-
An AC mains stereo radiogram with a mono radio covering MW (182-565 metres), LW (1050-1900 metres) and VHF (86-108MHz), a 2 x 3 watt amplifier, and a Garrard "Autoslim" autochanger with an EV26A ceramic pick-up. Two 8 x 5 inch loudspeakers. Sockets for external aerials and tape recorder. Released September 1962 price £49 15s 3d plus Purchase tax.
Similar to the Ekco SRG412 model which is in a slightly different cabinet..
- Price in first year of sale
- 50.00 GBP
- Source of data
- -- Schematic
- Literature/Schematics (1)
- Trader Service Sheet (suppl. of Wireless & El. Trader, etc.) (1661 dated 18 July 1964)
- Literature/Schematics (2)
- Radio And Television Servicing books (R&TVS)
- Author
- Model page created by Keith Staines. See "Data change" for further contributors.
