T1825
Ferranti, GB
- Country
- Great Britain (UK)
- Manufacturer / Brand
- Ferranti, GB
- Year
- 1952
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 199787
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 15
- Main principle
- Superheterodyne (common)
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- AC/DC-set / 200-250 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: T1825 - Ferranti, GB
- Shape
- Console with any shape - in general
- Notes
- Console TV set with a 12 inch 405 line b/w flat-faced CRT. The tuner can be tuned to any one of the five regional VHF GB Band I BBC stations then broadcasting via three manually operated control knobs. See also table model T1325 which has an identical chassis.
- Literature/Schematics (1)

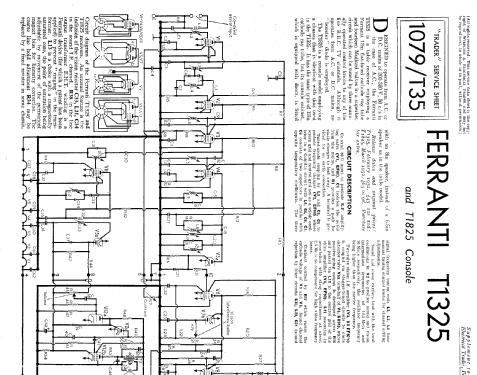

- Trader Service Sheet (suppl. of Wireless & El. Trader, etc.) (1079/T35)
- Author
- Model page created by Howard Craven. See "Data change" for further contributors.
