U1103
Ferranti, GB
- Country
- Great Britain (UK)
- Manufacturer / Brand
- Ferranti, GB
- Year
- 1963
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 103131
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 470/10700 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s) 8 FM circuit(s)
- Wave bands
- Broadcast, Long Wave and FM or UHF.
- Power type and voltage
- AC/DC-set / 200-250 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Wooden case
- from Radiomuseum.org
- Model: U1103 - Ferranti, GB
- Shape
- Tablemodel, low profile (big size).
- Notes
-
An AC/DC mains table radio covering MW (182-545 metres) and LW (1200-2000 metres) plus four preset VHF radio stations between 86-100 MHz selected by push buttons marked 'LIGHT', 'THIRD', HOME 1 and 'HOME 2'. Sockets for an external FM aerial and external loudspeaker. Elliptical loudspeaker 8 x 5 inch. Released June 1963, price £22 12s 5d plus purchase tax.
Similar to the Ekco U428 model.
- Mentioned in
- -- Original-techn. papers.
- Literature/Schematics (1)

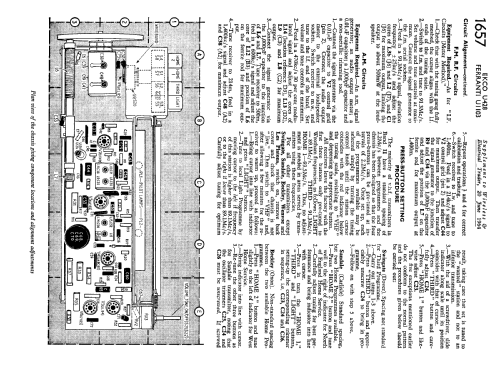

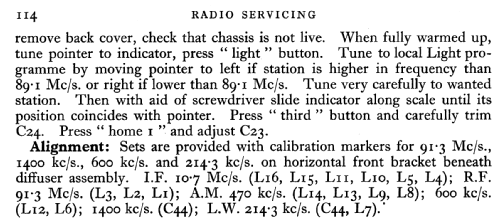

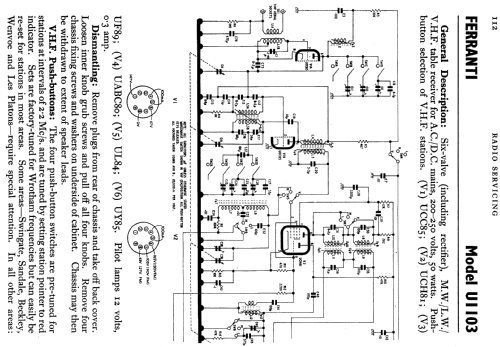

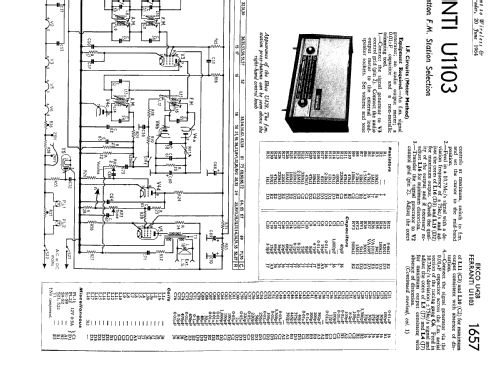

- Trader Service Sheet (suppl. of Wireless & El. Trader, etc.) (1657 dated 20 June 1964)
