Portable Car Radio 94 M94

• Country
• Australia

• Manufacturer / Brand
• Ferris Bros. Pty Ltd.; Sydney

• Year
• 1953

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 91559

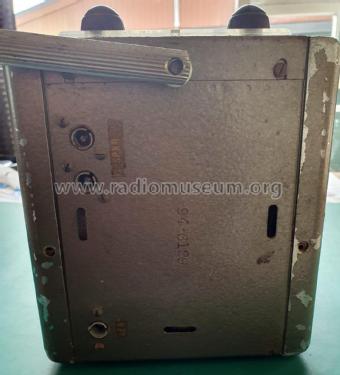

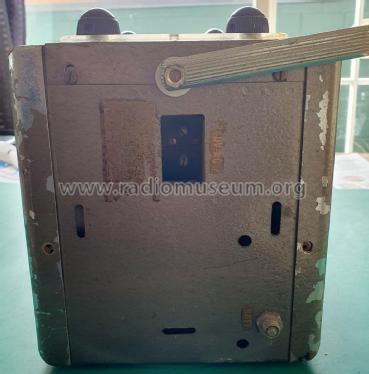

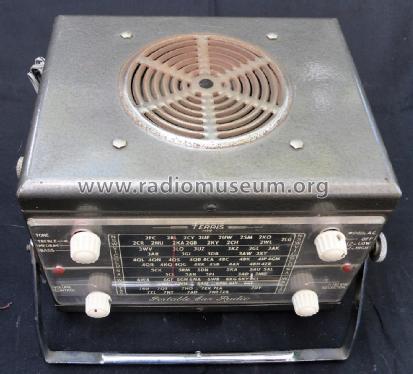

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 6BH5 6AN7 6BH5 6BD7 6BW6 6V4

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Line / Batteries (any type) / 240 / 6; 12 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Metal case

• from Radiomuseum.org
• Model: Portable Car Radio 94 M94 - Ferris Bros. Pty Ltd.; Sydney

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 240 x 175 x 205 mm / 9.4 x 6.9 x 8.1 inch

• Notes
• Early Portable Car Radio. This model mounts in a cradle under the dash board when used as a car radio. It can be withdrawn and connected to the AC mains for household use. It uses a non-synchronous vibrator power supply when in the car. Both 6 volt and 12 volt versions were made.

• Source of data
• -- Collector info (Sammler)

• Circuit diagram reference
• Australian Official Radio Service Manual Vol. XII

• Author
• Model page created by a member from A. See "Data change" for further contributors.
