2A/NH

• Country
• Great Britain (UK)

• Manufacturer / Brand
• Ferrograph, British Ferrograph Recorder (Wright & Weaire); London

• Year
• 1955 ??

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 207079

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• EF86 EF86 EF86 EL84 ECC81 EL84 EZ80

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Tape Recorder

• Power type and voltage
• Alternating Current supply (AC) / 205; 225; 245 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 2.5 W (unknown quality)

• Material
• Various materials

• from Radiomuseum.org

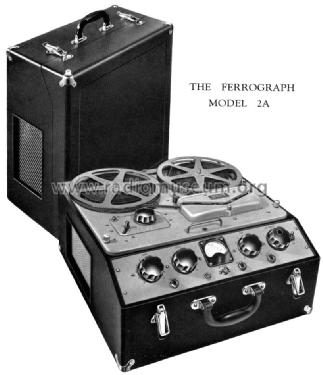

• Model: 2A/NH - Ferrograph, British Ferrograph

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 18.5 x 17.5 x 9.75 inch / 470 x 445 x 248 mm

• Notes
• Three motor open reel, two track, two speed (7-1/2" & 15" p/sec) recorder with level meter.
  110V/60c.s. also made for USA market.

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
