• Country
• Germany

• Manufacturer / Brand
• FG Elektronik, Franz Grigelat; Rückersdorf/Nürnberg

• Year
• 1981 ??

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 298535

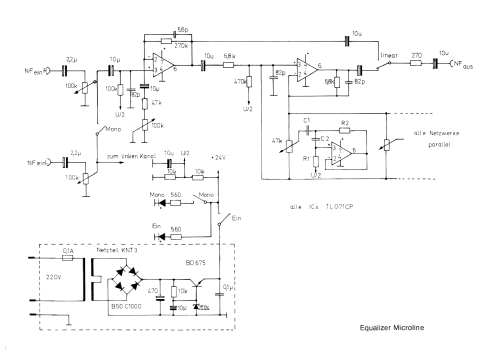

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 1

• Semiconductors
• BD675 ZD24 TL071 B50C1000

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Hi-Fi equipment

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org
• Model: Microline Stereo Equalizer - FG Elektronik, Franz Grigelat;

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 200 x 84 x 245 mm / 7.9 x 3.3 x 9.6 inch

• Notes

• Frequenzgang: < 10 Hz - > 100 kHz
  Klirrfaktor: < 0,01%
  Fremdspannungsabstand bei 1 V eff: > 100dB
  Anhebung / Absenkung: +/- 15 dB
  Lineare Verstärkung: 1:3

  Lieferbare Gehäusefarben: schwarz, metallic, kupfer.

  Halbleiter nur einmal je Type gelistet.

• Net weight (2.2 lb = 1 kg)
• 2.2 kg / 4 lb 13.5 oz (4.846 lb)

• Mentioned in
• - - Manufacturers Literature

• Author
• Model page created by Bernhard Koob. See "Data change" for further contributors.
