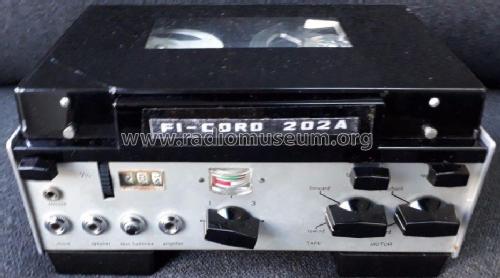

Fi-Cord 202A

Fi-Cord Ltd.; London and Scarborough

Data
Forum
Pictures
Collections

  • Year
  • 1965
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 303826

 Technical Specifications

  • Number of Transistors
  • 10
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Tape Recorder
  • Power type and voltage
  • Batteries / addl. power jack / 14 x 1.5 / See notes Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Various materials
  • from Radiomuseum.org
  • Model: Fi-Cord 202A - Fi-Cord Ltd.; London and
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Notes

  • Portable 2 track tape mono tape recorder. 2 speeds, 3.75 and 7.5 ips. Max. spool size 4 inch. Frequency response: 50Hz - 12kHz (7.5 ips), 50 Hz - 8kHz (3.75 ips). Button operated battery tester with separate indicator scale.

    Powered by two 7 x AA battery packs (rechargeable or mercury long life) which are fitted under the recorder. Also supplied with a power pack for use with 12 volt car battery, a power pack for use with AC mains 110-240 volts, and a leather carry case.

    See also the earlier same specification Fi-Cord 202 model without the battery button/indicator and different front layout.

  • Mentioned in
  • - - Manufacturers Literature (Fi-Cord Service Manual and advertisement dated October 1965)
  • Author
  • Model page created by Howard Craven. See "Data change" for further contributors.
