• Country
• Great Britain (UK)

• Manufacturer / Brand
• Fidelity Radio Co. Ltd.; London

• Year
• 1964 ?

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 174239

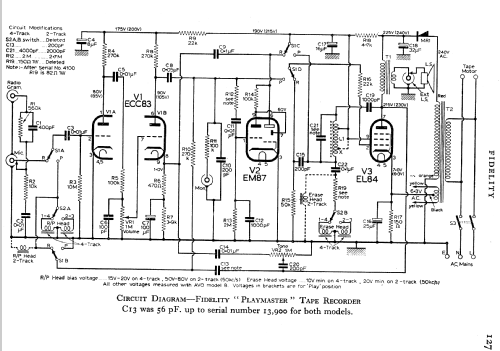

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• ECC83 EM87 EL84

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Tape Recorder

• Power type and voltage
• Alternating Current supply (AC) / 200-250 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 3 W (unknown quality)

• from Radiomuseum.org
• Model: Playmaster TR 5 [2 Track] - Fidelity Radio Co. Ltd.;

• Shape
• Tablemodel, with any shape - general.

• Notes
• Portable tape recorder fitted with a BSR deck. Single speed 3.75 ips, 2 track, max spool size 5.75 inches.

• Source of data
• -- Schematic

• Circuit diagram reference
• Radio and TV Servicing books (R&TVS) book

• Literature/Schematics (1)
• ERT Chart 1495

• Author
• Model page created by Keith Staines. See "Data change" for further contributors.
