Studio TR17
Fidelity Radio Co. Ltd.; London
- Country
- Great Britain (UK)
- Manufacturer / Brand
- Fidelity Radio Co. Ltd.; London
- Year
- 1970 ??
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 327953

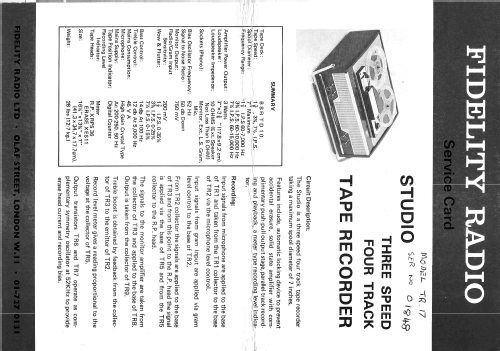

image from service document
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 9
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Tape Recorder
- Power type and voltage
- Alternating Current supply (AC) / 200-250 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Power out
- 3 W (unknown quality)
- Material
- Various materials
- from Radiomuseum.org
- Model: Studio TR17 - Fidelity Radio Co. Ltd.;
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 413 x 347 x 177 mm / 16.3 x 13.7 x 7 inch
- Notes
-
3 speed 4 track tape recorder with a BSR TD10 deck. Recording level meter, elliptical loudspeaker 7 x 3⅝ inch. RCA phono sockets for Monitor, External loudspeaker, Gram. and Microphone.
Max spool size 7 inches. Supplied with a crystal microphone.
- Net weight (2.2 lb = 1 kg)
- 12.7 kg / 27 lb 15.6 oz (27.974 lb)
- Mentioned in
- - - Manufacturers Literature (Fidelity Radio Service Card Studio tape recorder)
- Author
- Model page created by Mike Edwards † 25.10.21. See "Data change" for further contributors.
