• Country
• Japan

• Manufacturer / Brand
• Finetone; (where?)

• Year
• 1970 ??

• Category
• Citizen Band Equipment

• Radiomuseum.org ID
• 233188

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 12

• Semiconductors
• 2SC394 2SC380 2SC380 2SC380 2SC54 2SC380 2SC481 2SC388 2SB54 2SB54 2SB56 2SB56 1N60

• Main principle
• Transceiver; ZF/IF 455 kHz

• Wave bands
• Short Wave (SW only)

• Power type and voltage
• Batteries / addl. power jack / 8 x 1,5 / 12 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.25 inch = 5.7 cm

• Power out
• 0.8 W (undistorted)

• Material
• Metal case

• from Radiomuseum.org

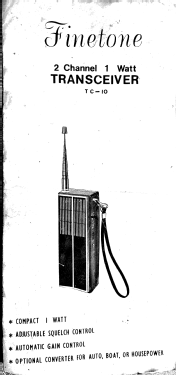

• Model: TC-10 [split rear lid] - Finetone; where?

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 57 x 175 x 50 mm / 2.2 x 6.9 x 2 inch

• Notes

• 1 W -  2 Channel CB transceiver.

  Volume and squelch control - headphone output - external AC power socket - external CHG socket - push to talk with "Call" key - external 60" telescopic antenna - connection for portable wrist strap.

  Made in Japan



• Net weight (2.2 lb = 1 kg)
• 0.850 kg / 1 lb 14 oz (1.872 lb)

• Author
• Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
