13-G-165 Code 280-5-17T23
Firestone Tire & Rubber Co. (Air Chief & Roamer, Airchief); Akron (OH)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Firestone Tire & Rubber Co. (Air Chief & Roamer, Airchief); Akron (OH)
- Year
- 1956 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 298378

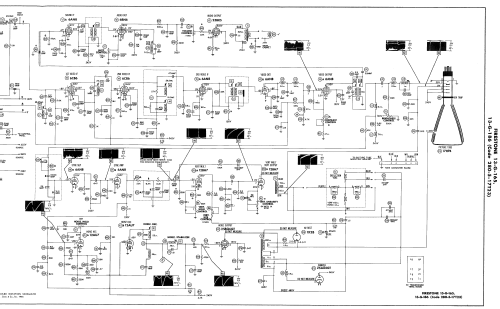

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 15
- Main principle
- Superhet with RF-stage
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 60 cycles, 117V = 110 -120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: 13-G-165 Code 280-5-17T23 - Firestone Tire & Rubber Co.
- Shape
- Tablemodel, with any shape - general.
- Notes
-
The Firestone model 13-G-165 Code 280-5-17T23 is a 17" b/w TV with US standard VHF Tuner channels 2 thru 13, equipped with VHF-tuner 211-25514-1 and picture tube 17HP4.
- Literature/Schematics (1)

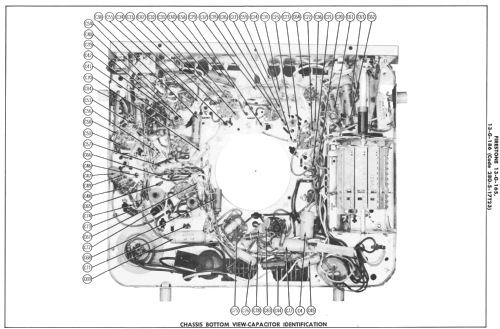

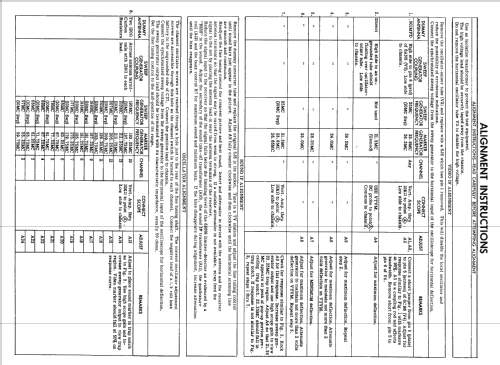

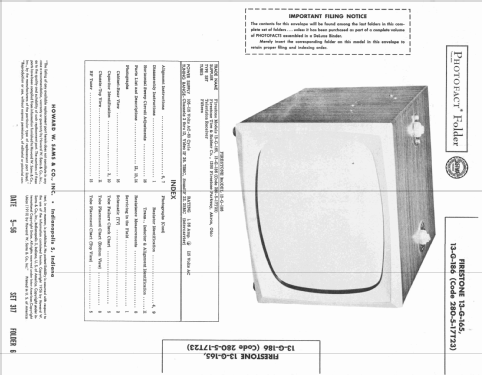

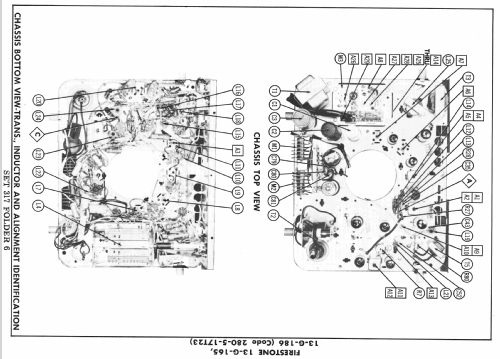

- Photofact Folder, Howard W. SAMS (Set 317 Folder 6 dated 5-56)
- Author
- Model page created by Dirk Taekels. See "Data change" for further contributors.
