13-G-193 Code 280-5 Ch= 21T31
Firestone Tire & Rubber Co. (Air Chief & Roamer, Airchief); Akron (OH)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Firestone Tire & Rubber Co. (Air Chief & Roamer, Airchief); Akron (OH)
- Year
- 1956 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 301277
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 18
- Valves / Tubes
- 6BQ7A 6AF4 6AT8 6CB6 6CB6 6CB6 6AW8 12C5 6AN8 6BN6 6BK5 6C4 6S4 12AU7 6CD6G 6AX4GT 1B3GT 21ALP4A
- Main principle
- Superhet with RF-stage
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 60 cycles, 117V = 110 -120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: 13-G-193 Code 280-5 Ch= 21T31 - Firestone Tire & Rubber Co.
- Shape
- Tablemodel, with any shape - general.
- Notes
-

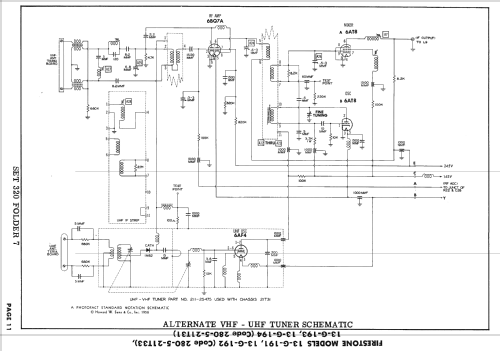

Firestone model 13-G-193 code 280-5 is a 21" b/w TV with US standard VHF tuner channels 2 thru 13, 14 thru 83 UHF. Equipped with chassis 21T31,VHF/UHF Tuner 211-25475 and picture tube 21ALP4A.
- Literature/Schematics (1)

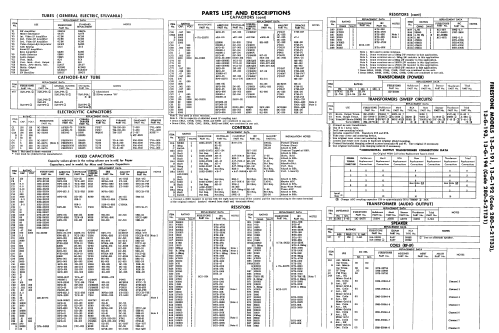

- Photofact Folder, Howard W. SAMS (Set 320 Folder 7 dated 6-56)
- Author
- Model page created by Dirk Taekels. See "Data change" for further contributors.
