13-G-196 Code 334-5-A59U/A
Firestone Tire & Rubber Co. (Air Chief & Roamer, Airchief); Akron (OH)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Firestone Tire & Rubber Co. (Air Chief & Roamer, Airchief); Akron (OH)
- Year
- 1956 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 276453
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 17
- Valves / Tubes
- 4BZ7 2AF4 5U8 3CB6 3CB6 3CB6 12BY7A 5U8 3BN6 5AQ5 7AU7 12W6GT 6SN7GTB 12BQ6GA or 12CU6 12AX4GTA 1B3GT 21ATP4
- Main principle
- Superhet with RF-stage
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 60 cycles, 110-120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: 13-G-196 Code 334-5-A59U/A - Firestone Tire & Rubber Co.
- Shape

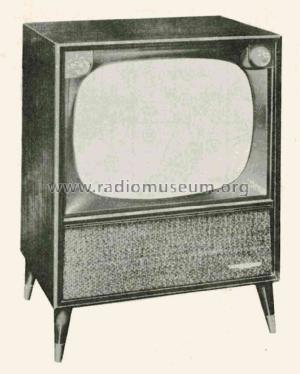

- Console, Lowboy (legs < 50 %).
- Notes
-
The FIRESTONE model 13-G-196 Code 334-5-A59U/A is a 21" b/w TV with US standard VHF Tuner channels 2 thru 13, 14 thru 83 UHF.Equipped with VHF-UHF tuner model 25A1138 and picture tube 21ATP4. 2x Selenium rectifier.
- Literature/Schematics (1)

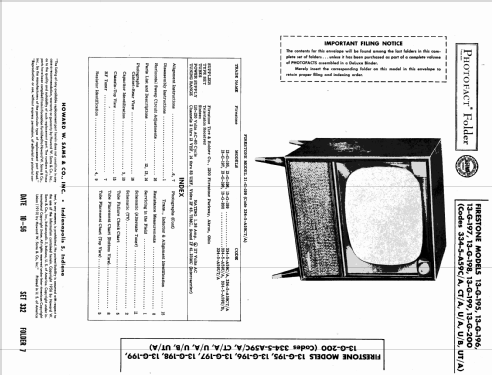

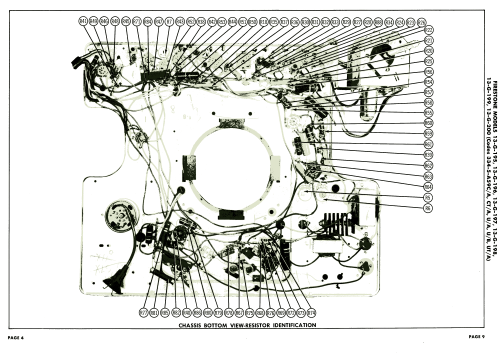

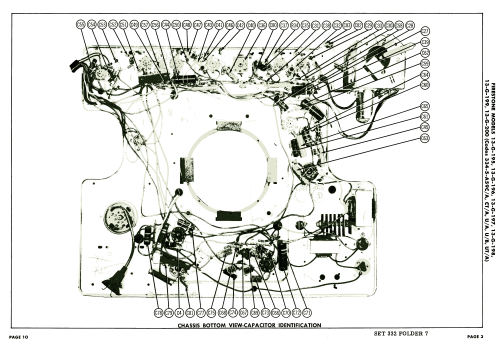

- Photofact Folder, Howard W. SAMS (Set 332 Folder 7 dated 10-56)
- Author
- Model page created by Dirk Taekels. See "Data change" for further contributors.
