• Country
• United States of America (USA)

• Manufacturer / Brand
• Firestone Tire & Rubber Co. (Air Chief & Roamer, Airchief); Akron (OH)

• Year
• 1956 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 276458

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 17

• Valves / Tubes
• 4BZ7 2AF4 5U8 3CB6 3CB6 3CB6 12BY7A 5U8 3BN6 5AQ5 7AU7 12W6GT 6SN7GTB 12BQ6GA or 12CU6 12AX4GTA 1B3GT 21ATP4

• Main principle
• Superhet with RF-stage

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 60 cycles, 110-120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm

• Material
• Wooden case

• from Radiomuseum.org
• Model: 13-G-197 Code 334-5-A59UT/A - Firestone Tire & Rubber Co.

• Shape
• Console, Lowboy (legs < 50 %).

• Notes

• The FIRESTONE model 13-G-197  Code 334-5-A59UT/A is a 21" b/w TV with US standard VHF Tuner channels 2 thru 13, 14 thru 83 UHF.Equipped with VHF-UHF tuner model 25A1138 and picture tube 21ATP4. 2x Selenium rectifier.

• Literature/Schematics (1)

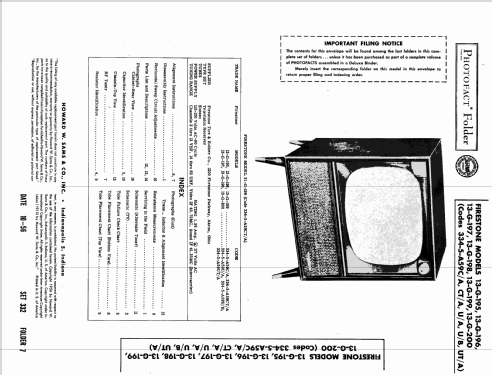

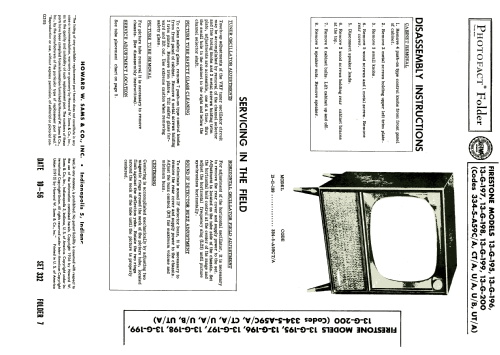

• Photofact Folder, Howard W. SAMS (Set 332 Folder 7 dated 10-56)

• Author
• Model page created by Dirk Taekels. See "Data change" for further contributors.
