13-G-200 Code 334-5-A59U/B

Firestone Tire & Rubber Co. (Air Chief & Roamer, Airchief); Akron (OH)

Data

Forum

Pictures

Collections

Country
United States of America (USA)

Manufacturer / Brand
Firestone Tire & Rubber Co. (Air Chief & Roamer, Airchief); Akron (OH)

Year
1956 ?

Category
Television Receiver (TV) or Monitor

Radiomuseum.org ID
276511

Schematics

13-G-200 Code 334-5-A59U/B ; Firestone Tire & (ID = 1925339) Television — Firestone Tire & 13-G-200 Code 334-5-A59U/B (3)

13-G-200 Code 334-5-A59U/B ; Firestone Tire & (ID = 1925340) Television — Firestone Tire & 13-G-200 Code 334-5-A59U/B (3)

13-G-200 Code 334-5-A59U/B ; Firestone Tire & (ID = 1925341) Television — Firestone Tire & 13-G-200 Code 334-5-A59U/B (3)

13-G-200 Code 334-5-A59U/B ; Firestone Tire & (ID = 1925342) Television — Firestone Tire & 13-G-200 Code 334-5-A59U/B (3)

13-G-200 Code 334-5-A59U/B ; Firestone Tire & (ID = 1925343) Television — Firestone Tire & 13-G-200 Code 334-5-A59U/B (3)

13-G-200 Code 334-5-A59U/B ; Firestone Tire & (ID = 1926084) Television — Firestone Tire & 13-G-200 Code 334-5-A59U/B (3)

13-G-200 Code 334-5-A59U/B ; Firestone Tire & (ID = 1926085) Television — Firestone Tire & 13-G-200 Code 334-5-A59U/B (3)

13-G-200 Code 334-5-A59U/B ; Firestone Tire & (ID = 1926086) Television — Firestone Tire & 13-G-200 Code 334-5-A59U/B (3)

13-G-200 Code 334-5-A59U/B ; Firestone Tire & (ID = 1926087) Television — Firestone Tire & 13-G-200 Code 334-5-A59U/B (3)

13-G-200 Code 334-5-A59U/B ; Firestone Tire & (ID = 1926088) Television — Firestone Tire & 13-G-200 Code 334-5-A59U/B (3)

13-G-200 Code 334-5-A59U/B ; Firestone Tire & (ID = 1926089) Television — Firestone Tire & 13-G-200 Code 334-5-A59U/B (3)

13-G-200 Code 334-5-A59U/B ; Firestone Tire & (ID = 1926090) Television — Firestone Tire & 13-G-200 Code 334-5-A59U/B (3)

13-G-200 Code 334-5-A59U/B ; Firestone Tire & (ID = 1926091) Television — Firestone Tire & 13-G-200 Code 334-5-A59U/B (3)

13-G-200 Code 334-5-A59U/B ; Firestone Tire & (ID = 1926092) Television — Firestone Tire & 13-G-200 Code 334-5-A59U/B (3)

13-G-200 Code 334-5-A59U/B ; Firestone Tire & (ID = 1926093) Television — Firestone Tire & 13-G-200 Code 334-5-A59U/B (3)

13-G-200 Code 334-5-A59U/B ; Firestone Tire & (ID = 1925338) Television — Firestone Tire & 13-G-200 Code 334-5-A59U/B (2)

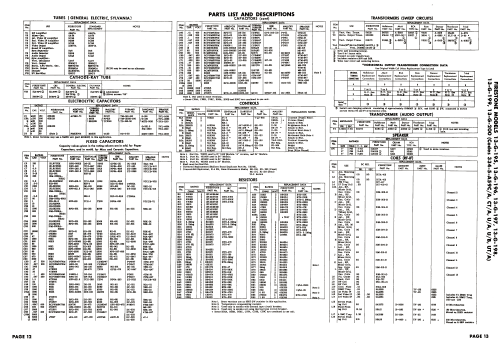

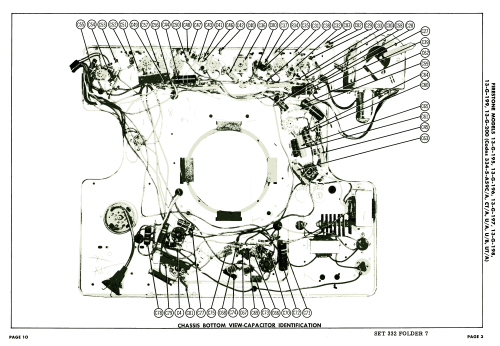

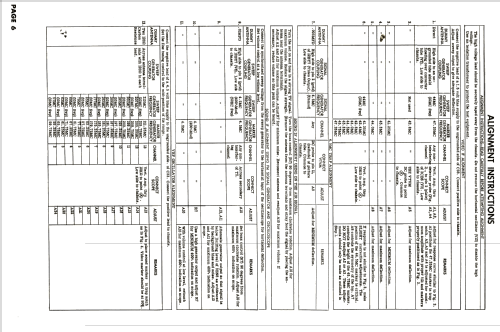

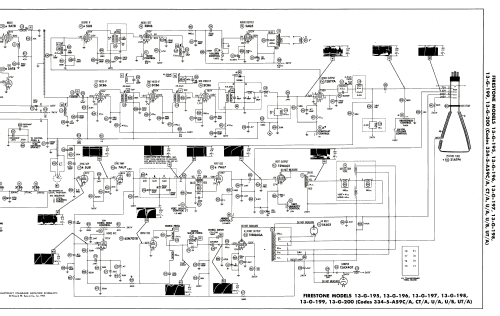

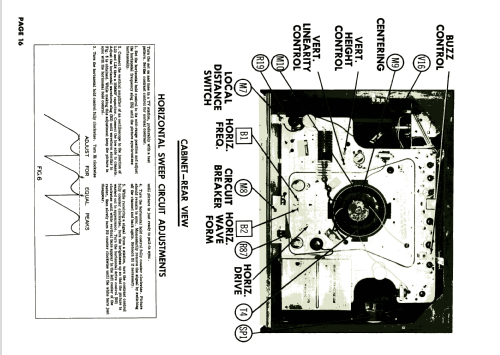

Picture from service manual.

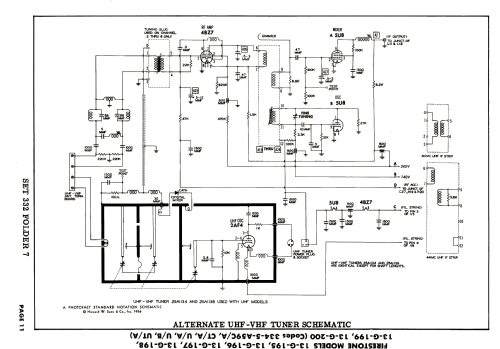

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Tubes
17

Valves / Tubes
4BZ7 2AF4 5U8 3CB6 3CB6 3CB6 12BY7A 5U8 3BN6 5AQ5 7AU7 12W6GT 6SN7GTB 12BQ6GA or 12CU6 12AX4GTA 1B3GT 21ATP4

Main principle
Superhet with RF-stage

Wave bands
VHF incl. FM and/or UHF (see notes for details)

Power type and voltage
Alternating Current supply (AC) / 60 cycles, 110-120 Volt

Loudspeaker
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm

Material
Wooden case

from Radiomuseum.org
Model: 13-G-200 Code 334-5-A59U/B - Firestone Tire & Rubber Co.

Shape
Console, Lowboy (legs < 50 %).

Notes
The FIRESTONE model 13-G-200 Code 334-5-A59U/B is a 21" b/w TV with US standard VHF Tuner channels 2 thru 13, 14 thru 83 UHF.Equipped with VHF-UHF tuner model 25A1138 and picture tube 21ATP4. 2x Selenium rectifier.

Literature/Schematics (1)
Photofact Folder, Howard W. SAMS (Set 332 Folder 7 dated 10-56)

Author
Model page created by Dirk Taekels. See "Data change" for further contributors.
