13-G-202 Code 334-5-A61U/A

• Country
• United States of America (USA)

• Manufacturer / Brand
• Firestone Tire & Rubber Co. (Air Chief & Roamer, Airchief); Akron (OH)

• Year
• 1956 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 272647

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 21

• Valves / Tubes
• 6BZ7 6U8 6AF4 6CB6 6CB6 6CB6 6U8 12BY7 6U8 6BN6 6AQ5 6AU6 6BY6 12AU7 6W6GT 6SN7GT 6BQ6GA 1B3GT 6AX4GT 5U4GB 21ATP4

• Main principle
• Superhet with RF-stage

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 60 cycles, 110-120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 13-G-202 Code 334-5-A61U/A - Firestone Tire & Rubber Co.

• Shape
• Console with any shape - in general

• Notes

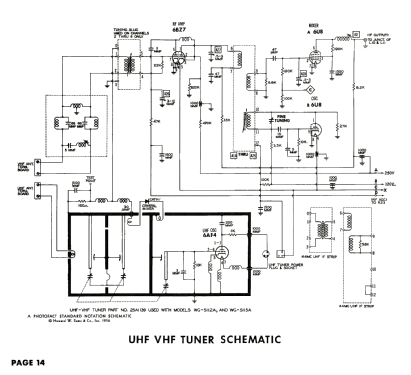

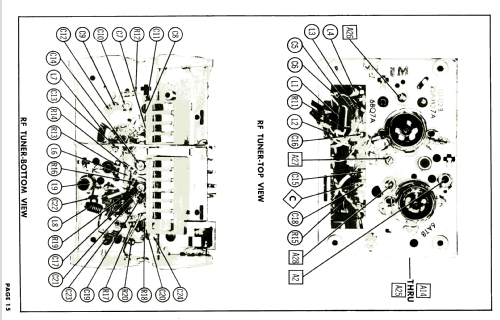

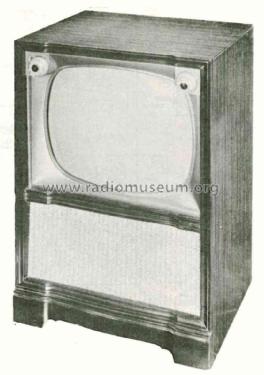

• The FIRESTONE model 13-G-202 Code 334-5-A61U/A is a 21" b/w TV with US standard VHF Tuner channels 2 thru 13, 14 thru 83 UHF. Equipped with UHF/VHF tuner 25A1139 and picture tube 21ATP4.



• Literature/Schematics (1)

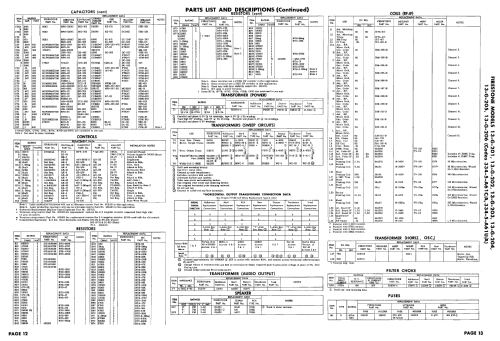

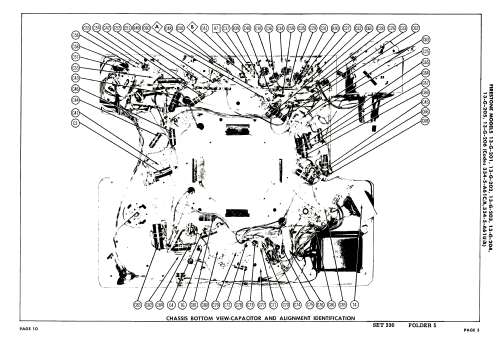

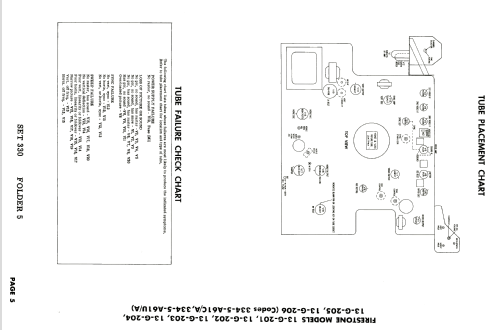

• Photofact Folder, Howard W. SAMS (Set 330 folder 5 dated 9-56.)

• Author
• Model page created by Dirk Taekels. See "Data change" for further contributors.
