13-G-203 Code 334-5-A61U/A
Firestone Tire & Rubber Co. (Air Chief & Roamer, Airchief); Akron (OH)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Firestone Tire & Rubber Co. (Air Chief & Roamer, Airchief); Akron (OH)
- Year
- 1956 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 272591
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 20
- Valves / Tubes
- 6BQ7A 6AT8 6CB6 6CB6 6CB6 6U8 12BY7 6U8 6BN6 6AQ5 6AU6 6BY6 12AU7 6W6GT 6SN7GT 6BQ6GA 1B3GT 6AX4GT 5U4GB 21ATP4
- Main principle
- Superhet with RF-stage
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 60 cycles, 110-120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 13-G-203 Code 334-5-A61U/A - Firestone Tire & Rubber Co.
- Shape
- Console with any shape - in general
- Notes
-
The FIRESTONE model 13-G-203 Code 334-5-A61U/A is a 21" b/w TV with US standard VHF Tuner channels 2 thru 13. Equipped with VHF tuner 25A1137 and picture tube 21ATP4.
- Literature/Schematics (1)

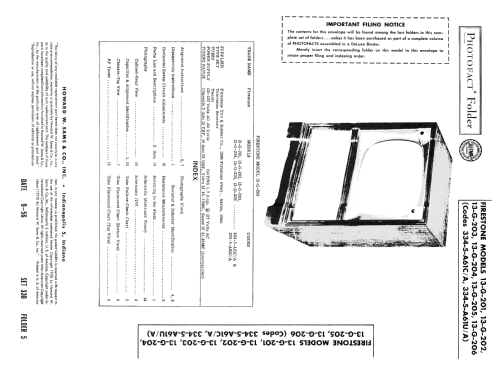

- Photofact Folder, Howard W. SAMS (Set 330 folder 5 dated 9-56.)
- Author
- Model page created by Dirk Taekels. See "Data change" for further contributors.
