- Country
- United States of America (USA)
- Manufacturer / Brand
- Firestone Tire & Rubber Co. (Air Chief & Roamer, Airchief); Akron (OH)
- Year
- 1950 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 245478
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 22
- Valves / Tubes
- 6J6 6AG5 6J6 6AU6 6AU6 6AU6 6AL5 6AU6 6AU6 6AU6 6AL5 6AT6 25L6GT 12SN7GT 6SL7GT 6AL5 12SN7GT 12SN7GT 12SN7GT 1B3GT 25Z6GT 7JP4
- Main principle
- Superheterodyne (common)
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 105-125 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3.8 inch = 9.7 cm
- Material
- Wooden case
- from Radiomuseum.org

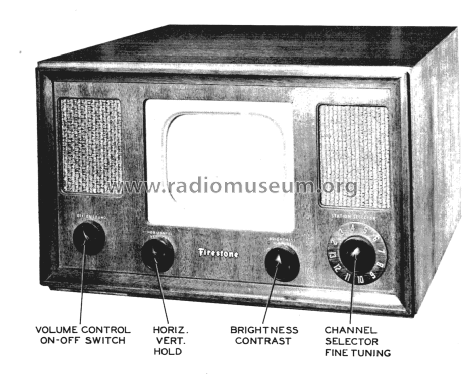

- Model: 13-G-3 - Firestone Tire & Rubber Co.
- Shape
- Tablemodel, low profile (big size).
- Notes
-
TV Receiver with 7" b/w CRT USA Standard.
Channels 2 thru 13.
- Mentioned in
- Photofact Folder, Howard W. SAMS (Vol. 9/50, Date 2-50, Set 86, Folder 5)
- Author
- Model page created by Friedrich Weber † 12.09.2014. See "Data change" for further contributors.
