13-G-5 Code= 291-9-651
Firestone Tire & Rubber Co. (Air Chief & Roamer, Airchief); Akron (OH)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Firestone Tire & Rubber Co. (Air Chief & Roamer, Airchief); Akron (OH)
- Year
- 1950 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 243615

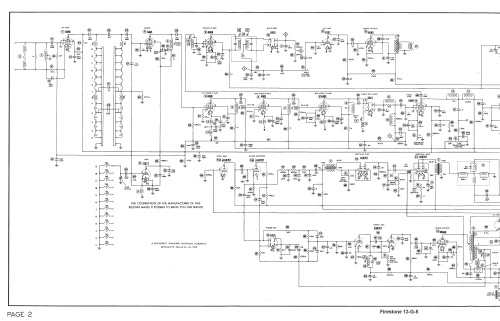

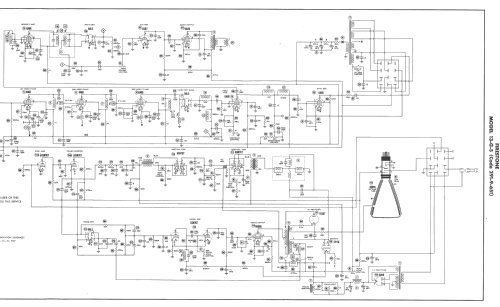

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 23
- Valves / Tubes
- 6BH6 6AG5 12AT7 6AG5 6AG5 6AG5 6AL5 6AU6 6AU6 6AL5 6SQ7 6AR5 6AU6 6SN7GT 6AL5 6SN7GT 6SN7GT 6SN7GT 6BG6G 5V4G 1B3GT 5U4G 10BP4
- Main principle
- Superheterodyne (common)
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 110-120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7.25 inch = 18.4 cm
- Material
- Wooden case
- from Radiomuseum.org

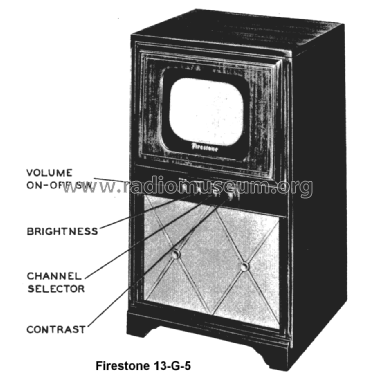

- Model: 13-G-5 Code= 291-9-651 - Firestone Tire & Rubber Co.
- Shape
- Console, Lowboy (legs < 50 %).
- Notes
-
TV-Receiver.
Channels 2 thru 13.
- Mentioned in

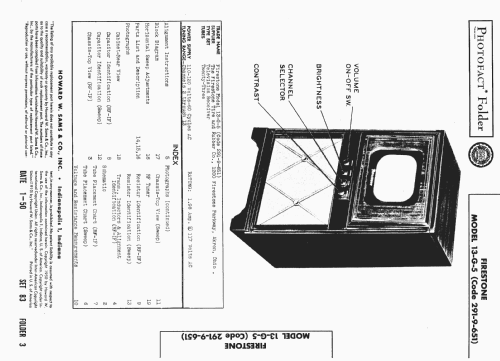

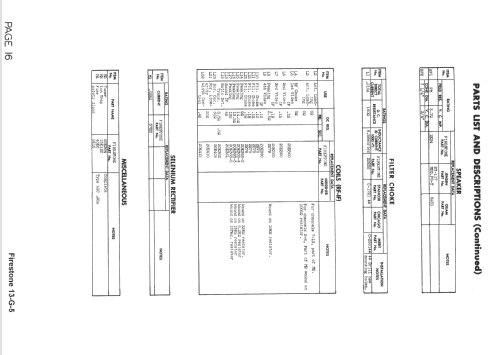

- Photofact Folder, Howard W. SAMS (Vol.9/50 Date 2-50 83-3 Set 83 Folder 3)
- Author
- Model page created by Friedrich Weber † 12.09.2014. See "Data change" for further contributors.
