• Country
• United States of America (USA)

• Manufacturer / Brand
• Firestone Tire & Rubber Co. (Air Chief & Roamer, Airchief); Akron (OH)

• Year
• 1956 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 261364

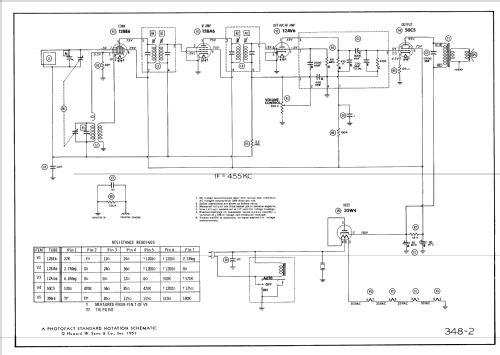

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12BE6 12BA6 12AV6 50C5 35W4

• Main principle
• ZF/IF 455 kHz

• Tuned circuits
• 4 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 60 cycles, 105-120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: 4-A-154 Code 382-6-374/2 - Firestone Tire & Rubber Co.

• Shape
• Tablemodel with Clock ((Alarm-) Clock Radio).

• Notes

• AC operated AM receiver with electrical clock. Loop antenna.

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 348 Folder 2 date 2 - 57)

• Author
• Model page created by Dirk Taekels. See "Data change" for further contributors.
