- Country
- United States of America (USA)
- Manufacturer / Brand
- Firestone Tire & Rubber Co. (Air Chief & Roamer, Airchief); Akron (OH)
- Year
- 1962 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 294385
- Number of Tubes
- 7
- Main principle
- Superheterodyne (common); ZF/IF 455/10700 kHz
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- AC/DC-set / 105 to 120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org

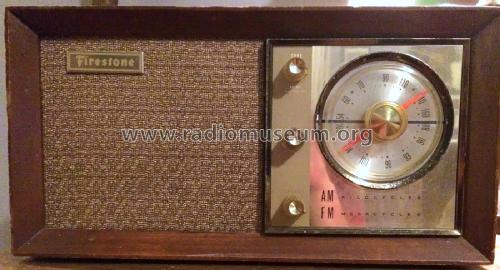

- Model: 4-A-234 32N43 - Firestone Tire & Rubber Co.
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 15 x 8 x 6 inch / 381 x 203 x 152 mm
- Notes
-

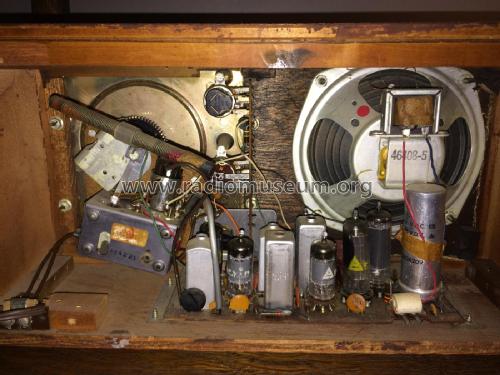

This Firestone 4-A-234 is made by Arvin It has a very similar chassis and layout as the Arvin 32R43 which was made in 1962.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 665 Folder 7 Dated 11-1963)
- Author
- Model page created by Jason Horton. See "Data change" for further contributors.
