- Country
- Canada
- Manufacturer / Brand
- Firestone Tire and Rubber Co. of Canada, Ltd.; Hamilton ON
- Year
- 1949 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 339761

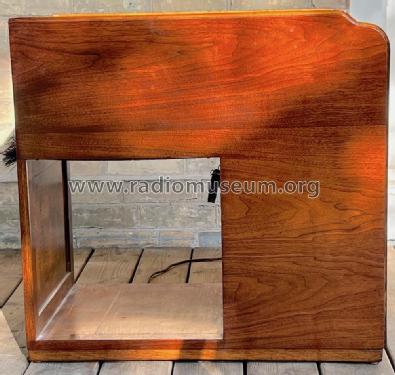

Side view; in original condition.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Wave bands
- Broadcast only (MW).
- Details
- Record Player (perh.Changer)
- Power type and voltage
- Alternating Current supply (AC) / 110 Volt

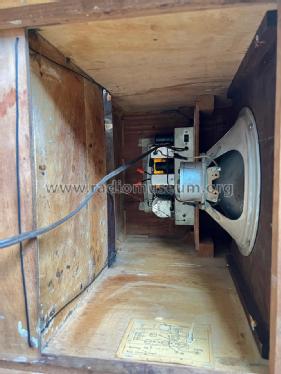

- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 4-A-49 - Firestone Tire and Rubber Co.
- Shape

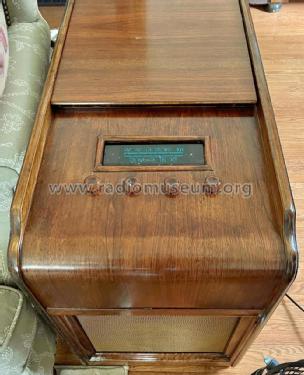

- Console: Chairside Radio.
- Notes
-

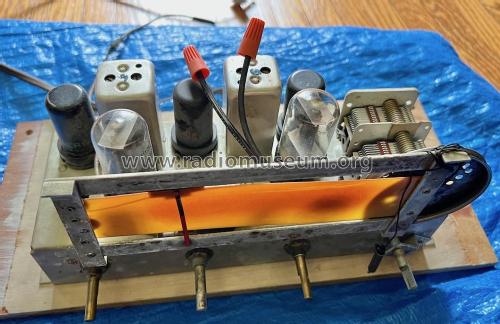

Chairside radio made for/by Firestone Tire & Rubber Co. of Canada Ltd., Hamilton, Ontario, Canada. Has AA5 chassis radio (AM band only) plus record player (changer?)
- Author
- Model page created by Stephen Brown. See "Data change" for further contributors.
