- Country
- United States of America (USA)
- Manufacturer / Brand
- Firestone Tire & Rubber Co. (Air Chief & Roamer, Airchief); Akron (OH)
- Year
- 1951 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 147403
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 9
- Main principle
- Superhet with RF-stage; ZF/IF 455/10700 kHz
- Wave bands
- Broadcast (BC) and FM or UHF.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 9.4 inch = 23.9 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: 4-A-86 [Late] - Firestone Tire & Rubber Co.
- Shape
- Console, Lowboy (legs < 50 %).
- Notes
-

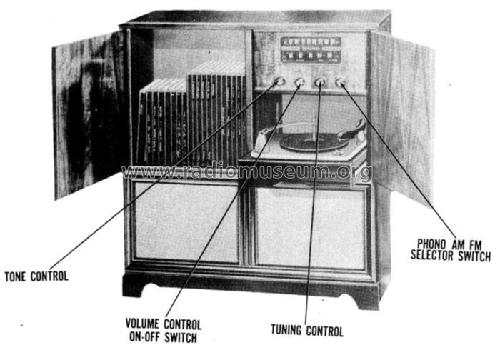

The Firestone Model 4-A-86 Late is an AC operated 9 tube radio-phono combination superheterodyne receiver with automatic record changer and loop antenna.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Date 9-51, Set 144, Folder 4)
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
