4-A-86 Code 334-0-07A96B
Firestone Tire & Rubber Co. (Air Chief & Roamer, Airchief); Akron (OH)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Firestone Tire & Rubber Co. (Air Chief & Roamer, Airchief); Akron (OH)
- Year
- 1950 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 147406

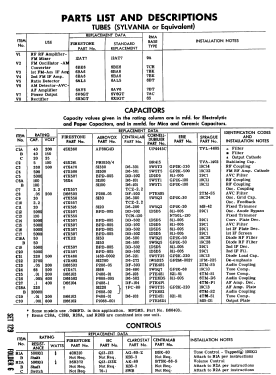

Picture from service manual.
Sams Photofact Folders
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 8
- Main principle
- Superhet with RF-stage; ZF/IF 455/10700 kHz
- Wave bands
- Broadcast (BC) and FM or UHF.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 9.4 inch = 23.9 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: 4-A-86 Code 334-0-07A96B - Firestone Tire & Rubber Co.
- Shape
- Console, Lowboy (legs < 50 %).
- Notes
-
Firestone model 4-A-86 is an AC operated combination phono-radio, AM-FM superheterodyne receiver with loop antenna.
- Literature/Schematics (1)

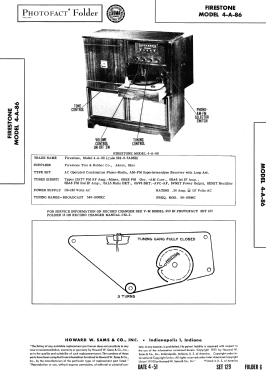

- Photofact Folder, Howard W. SAMS (Set 129, folder 6, dated 4-51)
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
