4-C-28 Code 120-5-TT528
Firestone Tire & Rubber Co. (Air Chief & Roamer, Airchief); Akron (OH)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Firestone Tire & Rubber Co. (Air Chief & Roamer, Airchief); Akron (OH)
- Year
- 1955 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 147292

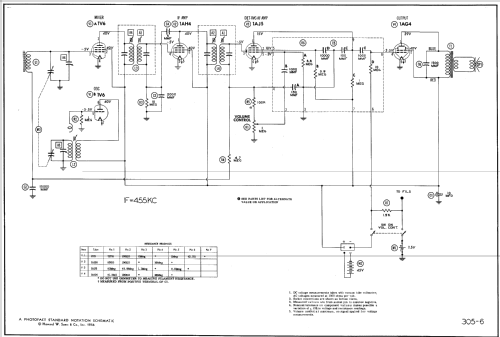

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Storage and/or dry batteries / 1.5 & 45 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.75 inch = 7 cm
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: 4-C-28 Code 120-5-TT528 - Firestone Tire & Rubber Co.
- Shape
- Portable set > 8 inch (also usable without mains)
- Notes
-
The Firestone Model 4-C-28 is a Battery Operated Portable AM Superheterodyne Receiver.
- Literature/Schematics (1)

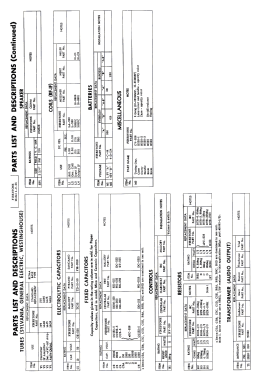

- Photofact Folder, Howard W. SAMS (Date 2-56, Set 305, Folder 6)
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
