• Country
• United States of America (USA)

• Manufacturer / Brand
• Firestone Tire & Rubber Co. (Air Chief & Roamer, Airchief); Akron (OH)

• Year
• 1946/1947

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 40628

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 6SK7GT 6SA7GT 6SK7GT 6SQ7GT 6V6GT 6X5GT

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 117 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 inch = 25.4 cm

• Power out
• 5.4 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 4-A-31 Air Chief "Rhapsody" Code 177-5-4A31 - Firestone Tire & Rubber Co.

• Shape
• Console with any shape - in general

• Notes
• The Air Chief 4-A-31 is an AC operated automatic phonograph-radio combination with a self contained loop antenna.

• External source of data
• Ernst Erb

• Source of data
• Collector's Guide to Antique Radios 4. Edition

• Circuit diagram reference
• Rider's Perpetual, Volume 15 = 1947 and before

• Mentioned in
• The Radio Collector's Directory and Price Guide 1921 - 1965

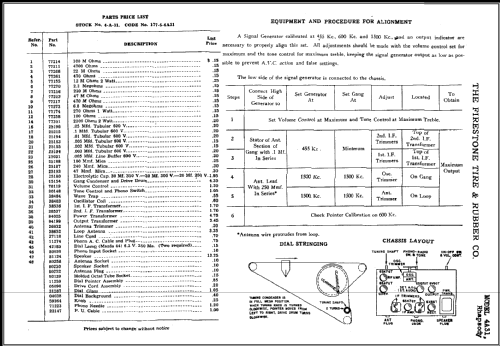

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 11, Folder 471-20)
