• Year
  • 1950 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 40670

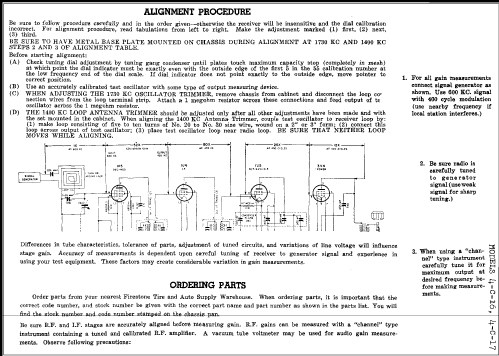

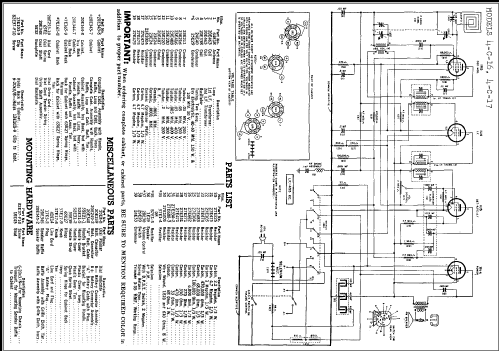

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 4
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Line / Batteries (any type) / 117V = 110 -120 / 67.5-90 & 4.5 V Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
  • Power out
  • 0.11 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: 4-C-17 Code 291-0-0674 - Firestone Tire & Rubber Co.
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 9.6 x 5 x 7 inch / 244 x 127 x 178 mm
  • Notes
  • Firestone model 4-C-17 is a three power AC/DC operated portable superheterodyne receiver with loop antenna. Selenium rectifier.

  • Net weight (2.2 lb = 1 kg)
  • 2 kg / 4 lb 6.5 oz (4.405 lb)
  • External source of data
  • Ernst Erb

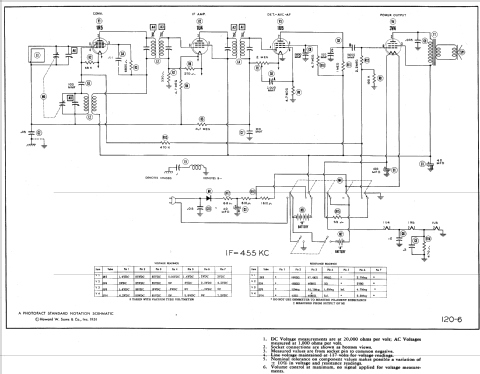

  • Circuit diagram reference
  • Rider's Perpetual, Volume 21, Copyright 1950
