• Country
• United States of America (USA)

• Manufacturer / Brand
• Firestone Tire & Rubber Co. (Air Chief & Roamer, Airchief); Akron (OH)

• Year
• 1955 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 40667

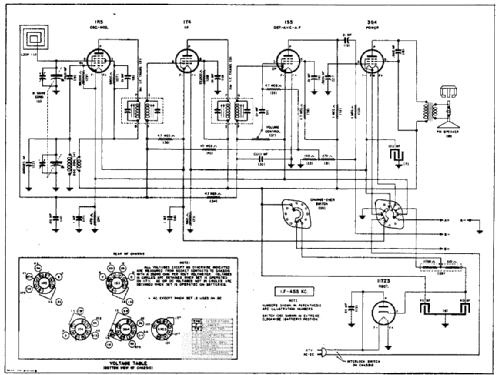

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 1R5 1T4 1S5 3Q4 117Z3

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Line / Batteries (any type) / (4.5; 90); AC/DC 117 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Material
• Bakelite or Plastics (type unknown)

• from Radiomuseum.org
• Model: 4-C-1 Code 291-7-564 - Firestone Tire & Rubber Co.

• Shape
• Portable set > 8 inch (also usable without mains)

• External source of data
• Ernst Erb

• Circuit diagram reference
• Rider's Perpetual, Volume 23 (last), covering up to 1954

• Other Models

• Here you find 473 models, 310 with images and 430 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Firestone Tire & Rubber Co. (Air Chief & Roamer, Airchief); Akron (OH)
