- Country
- United States of America (USA)
- Manufacturer / Brand
- Firestone Tire & Rubber Co. (Air Chief & Roamer, Airchief); Akron (OH)
- Year
- 1946/1947
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 156585
SAMS Photofact
RECONSTRUCTED LABEL
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Tuned circuits
- 5 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- AC/DC-set / 110-120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- from Radiomuseum.org

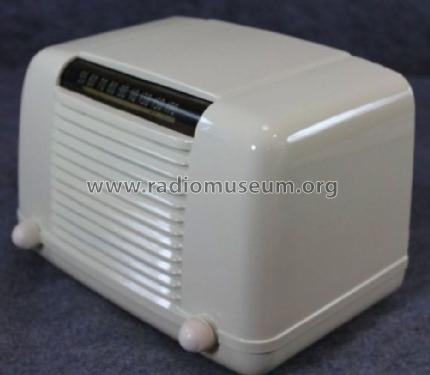

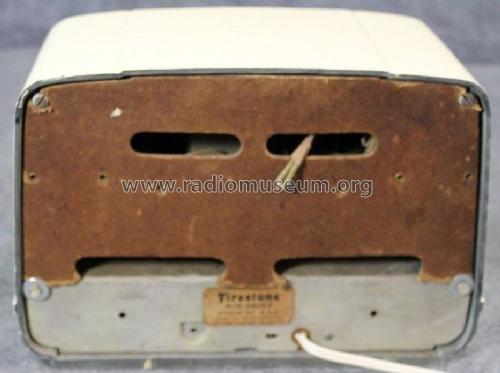

- Model: 4-A-2 Air Chief - Firestone Tire & Rubber Co.
- Notes
- The Air Chief model 4-A-2 is an AC-DC Operated Superheterodyne Receiver with Self Contained Loop Antenna.
- Literature/Schematics (1)

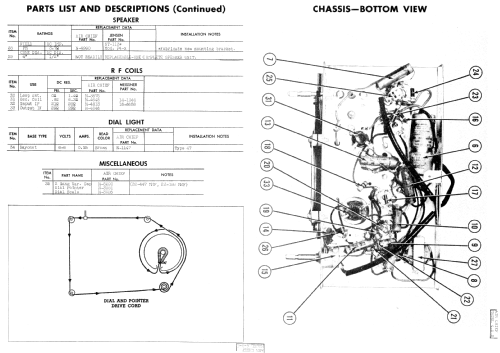

- Photofact Folder, Howard W. SAMS (Set 14 Folder 4 Date Feb 1947)
- Author
- Model page created by Ernst Erb. See "Data change" for further contributors.
