• Country
• United States of America (USA)

• Manufacturer / Brand
• Firestone Tire & Rubber Co. (Air Chief & Roamer, Airchief); Akron (OH)

• Year
• 1948

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 40634

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12SA7 12SK7 12SQ7 50L6GT 35Z5GT

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 105-125 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Power out
• 1.65 W (unknown quality)

• Material
• Bakelite or Plastics (type unknown)

• from Radiomuseum.org

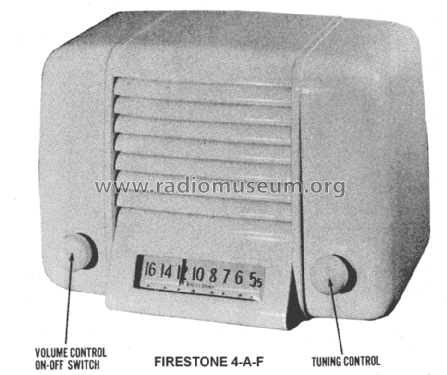

• Model: The Cameo 4-A-61 Code 332-8-137J2T - Firestone Tire & Rubber Co.

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• External source of data
• Ernst Erb

• Source of data
• Collector's Guide to Antique Radios 4. Edition

• Circuit diagram reference
• Rider's Perpetual, Volume 18 = 1949 and before

• Mentioned in
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (4818-7 Set 48 Folder 7)
