4-A-95 "The Westmoreland"
Firestone Tire & Rubber Co. (Air Chief & Roamer, Airchief); Akron (OH)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Firestone Tire & Rubber Co. (Air Chief & Roamer, Airchief); Akron (OH)
- Year
- 1951 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 40653
Beitman

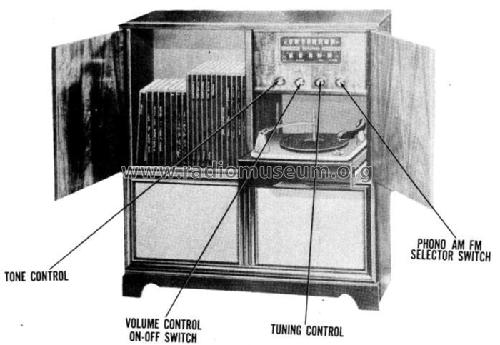

Picture from service manual.
Sams Photofact Folders

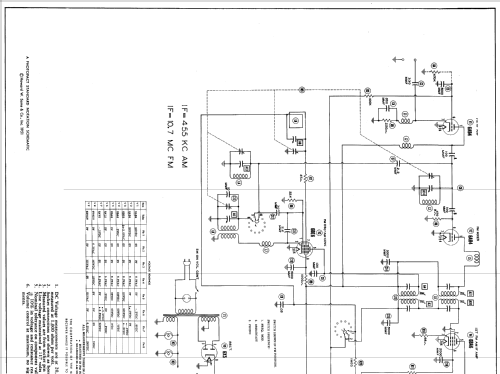

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 9
- Main principle
- Superheterodyne (common); ZF/IF 455/10700 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s) 8 FM circuit(s)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 inch = 25.4 cm
- Power out
- 0.8 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 4-A-95 "The Westmoreland" - Firestone Tire & Rubber Co.
- Shape
- Console, Lowboy (legs < 50 %).
- Notes
-
The Firestone Model 4-A-95 is an AC operated 9 tube radio-phono combination superheterodyne receiver with automatic record changer and loop antenna. Color= White Oak.
- External source of data
- Ernst Erb
- Circuit diagram reference

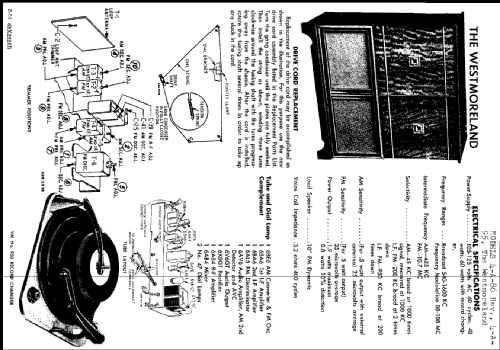

- Beitman Radio Diagrams Vol. 12, 1952
- Literature/Schematics (1)

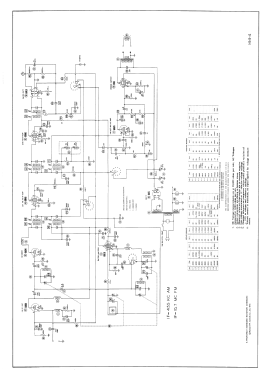

- Photofact Folder, Howard W. SAMS (Date 9-51, Set 144, Folder 4)
