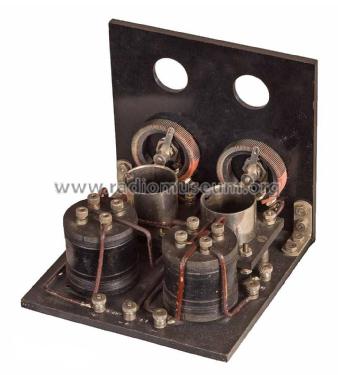

Firco Midget Two-Step Amplifier 40A
Firth, John & Co. (Firco); New York, (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Firth, John & Co. (Firco); New York, (NY)
- Year
- 1921
- Category
- Audio Amplifier or -mixer
- Radiomuseum.org ID
- 196172
- Number of Tubes
- 2
- Main principle
- Audio-Amplification; 2 AF stage(s)
- Wave bands
- - without
- Power type and voltage
- Storage and/or dry batteries
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Bakelite, TUBES VISIBLE
- from Radiomuseum.org
- Model: Firco Midget Two-Step Amplifier 40A - Firth, John & Co. Firco; New
- Shape
- Tablemodel, with any shape - general.
- Notes
- The Firco Radio Midget Receiving sets were advertised in the November 1921 Radio News magazine. The 40A Two-Step Amplifier used the Firco Saco-Clad shielded amplifying transformers.
- Price in first year of sale
- 30.00 $
- Literature/Schematics (1)
- November 1921 Radio News advertisement page 371
- Author
- Model page created by Alan Larsen. See "Data change" for further contributors.
