- Country
- United States of America (USA)
- Manufacturer / Brand
- Fisher Radio; New York (NY)
- Year
- 1954
- Category
- Audio Amplifier or -mixer
- Radiomuseum.org ID
- 147483
Sams Photofact Folders
Original Prospekt
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 105 - 125 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 25 W (unknown quality)
- Material
- Metal case
- from Radiomuseum.org
- Model: 70-A - Fisher Radio; New York NY
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 10.3 x 6.13 x 7.13 inch / 262 x 156 x 181 mm
- Notes
- The Fisher Model 70-A is an AC operated 25 Watt Audio Amplifier.
- Source of data
- -- Original prospect or advert
- Literature/Schematics (1)

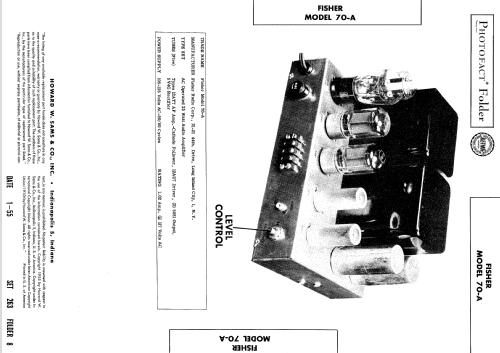

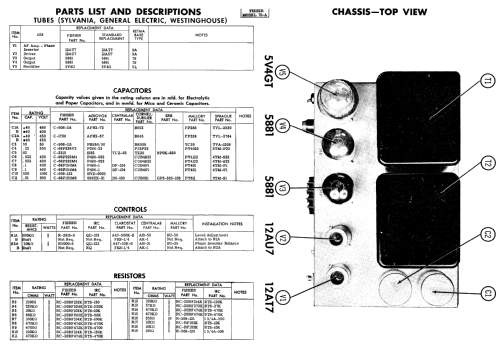

- Photofact Folder, Howard W. SAMS (Date 1-55, Set 263, Folder 8)
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
