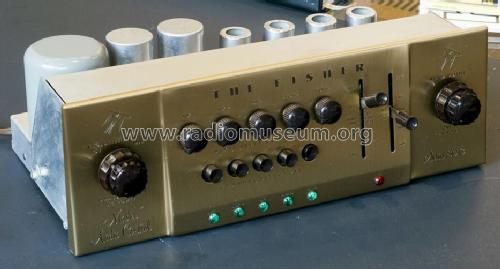

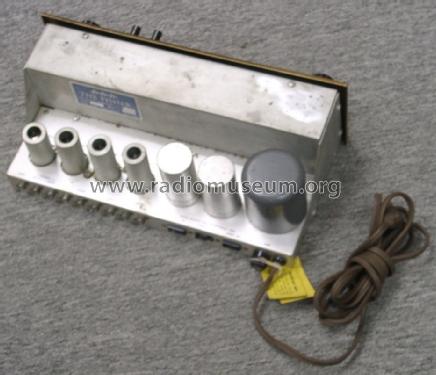

Master Audio Control 80-C

• Country
• United States of America (USA)

• Manufacturer / Brand
• Fisher Radio; New York (NY)

• Year
• 1956 ??

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 98533

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• 12AX7 12AX7 12AX7 12AU7A

• Number of Transistors

• Semiconductors
• Selenium-Rectifier Selenium-Rectifier

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 60 cycles, 117V = 110 -120 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org
• Model: Master Audio Control 80-C - Fisher Radio; New York NY

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 12.75 x 4.25 x 7.75 inch / 324 x 108 x 197 mm

• Notes

• Preamp-Equalizer, mono, with several phono equalization settings.

  Preamp-Equalizer, mono, with several phono equalization settings.
  AC Operated 5 Channel Audio Control Preamplifier With Equalizer.

• Net weight (2.2 lb = 1 kg)
• 5 kg / 11 lb 0.2 oz (11.013 lb)

• Price in first year of sale
• 100.00 $

• Source of data
• -- Original prospect or advert

• Literature/Schematics (1)
• Allied Radio Catalog Nº 150, 1956

• Literature/Schematics (2)
• Photofact Folder, Howard W. SAMS (Set 315 Folder 5 Dated 5-56)

• Author
• Model page created by Vitor Oliveira. See "Data change" for further contributors.
