90-R

Fisher Radio; New York (NY)

Data

Forum

Pictures

Collections

Country
United States of America (USA)

Manufacturer / Brand
Fisher Radio; New York (NY)

Year
1958 ?

Category
Broadcast Receiver - or past WW2 Tuner

Radiomuseum.org ID
125238

Schematics

90-R ; Fisher Radio; New (ID = 725028) Radio — Fisher Radio; New 90-R (3)

90-R ; Fisher Radio; New (ID = 725029) Radio — Fisher Radio; New 90-R (3)

90-R ; Fisher Radio; New (ID = 725030) Radio — Fisher Radio; New 90-R (3)

90-R ; Fisher Radio; New (ID = 725031) Radio — Fisher Radio; New 90-R (3)

90-R ; Fisher Radio; New (ID = 725032) Radio — Fisher Radio; New 90-R (3)

90-R ; Fisher Radio; New (ID = 725033) Radio — Fisher Radio; New 90-R (3)

90-R ; Fisher Radio; New (ID = 725034) Radio — Fisher Radio; New 90-R (3)

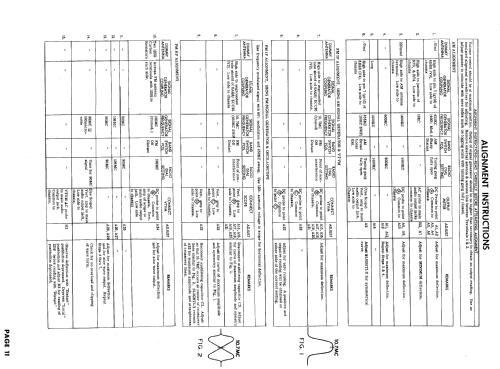

90-R ; Fisher Radio; New (ID = 725035) Radio — Fisher Radio; New 90-R (3)

90-R ; Fisher Radio; New (ID = 725036) Radio — Fisher Radio; New 90-R (3)

90-R ; Fisher Radio; New (ID = 725037) Radio — Fisher Radio; New 90-R (3)

90-R ; Fisher Radio; New (ID = 725038) Radio — Fisher Radio; New 90-R (3)

90-R ; Fisher Radio; New (ID = 1346780) Radio — Fisher Radio; New 90-R (3)

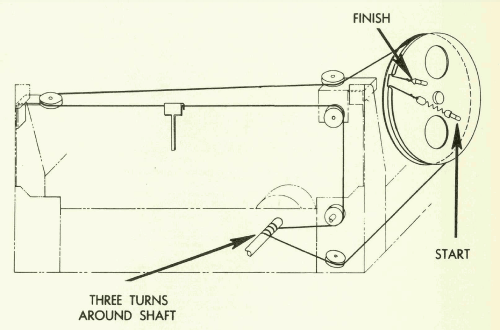

90-R ; Fisher Radio; New (ID = 1791215) Radio — Fisher Radio; New 90-R (3)

90-R ; Fisher Radio; New (ID = 413689) Radio — Fisher Radio; New 90-R (2)

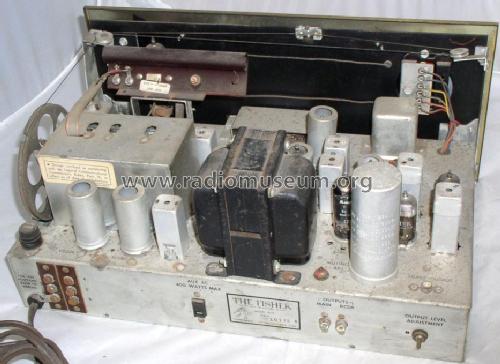

90-R ; Fisher Radio; New (ID = 413690) Radio — Fisher Radio; New 90-R (2)

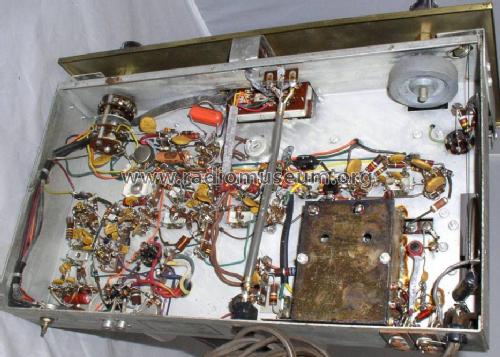

90-R ; Fisher Radio; New (ID = 413691) Radio — Fisher Radio; New 90-R (2)

90-R ; Fisher Radio; New (ID = 725027) Radio — Fisher Radio; New 90-R (2)
Sams Photofact Folders reference picture.

90-R ; Fisher Radio; New (ID = 880913) Radio — Fisher Radio; New 90-R (1)

90-R ; Fisher Radio; New (ID = 880914) Radio — Fisher Radio; New 90-R (1)

90-R ; Fisher Radio; New (ID = 1745378) Radio — Fisher Radio; New 90-R (2)
Allied Radio Katalog 1959

90-R ; Fisher Radio; New (ID = 1791211) Radio — Fisher Radio; New 90-R (2)
Service Manual

90-R ; Fisher Radio; New (ID = 1791212) Radio — Fisher Radio; New 90-R (2)
Service Manual

90-R ; Fisher Radio; New (ID = 2592381) Radio — Fisher Radio; New 90-R (2)

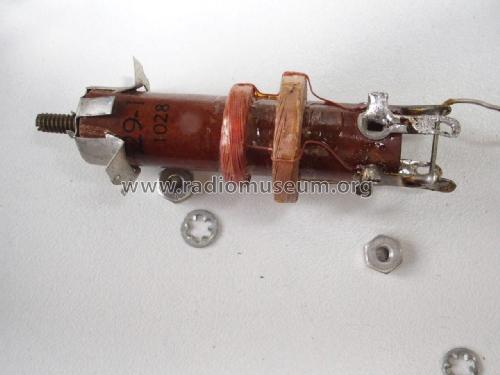

90-R ; Fisher Radio; New (ID = 2592430) Radio — Fisher Radio; New 90-R (1)

90-R ; Fisher Radio; New (ID = 2592431) Radio — Fisher Radio; New 90-R (1)

90-R ; Fisher Radio; New (ID = 2592432) Radio — Fisher Radio; New 90-R (1)

90-R ; Fisher Radio; New (ID = 2592433) Radio — Fisher Radio; New 90-R (1)

90-R ; Fisher Radio; New (ID = 2592434) Radio — Fisher Radio; New 90-R (1)

90-R ; Fisher Radio; New (ID = 2592435) Radio — Fisher Radio; New 90-R (1)

90-R ; Fisher Radio; New (ID = 2592436) Radio — Fisher Radio; New 90-R (1)

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Tubes
12

Valves / Tubes
PCC88 6AQ8 6BJ6 6BE6 EM840 6BJ6 EBF89 6BH6 6BH6 6AV6 6267 6V4

Main principle
Superhet with RF-stage; ZF/IF 455/10700 kHz

Wave bands
Broadcast (BC) and FM or UHF.

Power type and voltage
Alternating Current supply (AC) / 105 - 125 Volt

Loudspeaker
- For headphones or amp.

Material
Wooden case

from Radiomuseum.org
Model: 90-R - Fisher Radio; New York NY

Shape
Chassis only or for «building in»

Dimensions (WHD)
15.125 x 10.875 x 7 inch / 384 x 276 x 178 mm

Notes
Tuner, mono; with multiplex output.

Net weight (2.2 lb = 1 kg)
21 lb 0 oz (21 lb) / 9.534 kg

Price in first year of sale
200.00 $

Literature/Schematics (1)
Photofact Folder, Howard W. SAMS (Date 1-59, Set 427, Folder 8)

Literature/Schematics (2)
Radio Shack Catalog (1959; page 17)

Author
Model page created by Gottfried Silberhorn. See "Data change" for further contributors.

Other Models
Here you find 591 models, 502 with images and 197 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Fisher Radio; New York (NY)

Collections | Museums | Literature

Collections

The model 90-R is part of the collections of the following members.
