AM-FM Stereo Receiver 301
Fisher Radio; New York (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Fisher Radio; New York (NY)
- Year
- 1971
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 318999

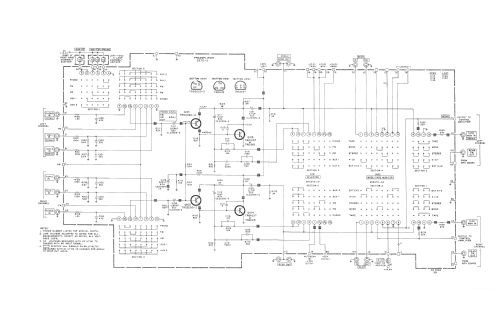

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 32
- Semiconductors
- Main principle
- Superheterodyne (common); ZF/IF 455/10700 kHz
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 120 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 84 W (140 W max.)
- Material
- Wooden case
- from Radiomuseum.org
- Model: AM-FM Stereo Receiver 301 - Fisher Radio; New York NY
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 18.5 x 5.5 x 16 inch / 470 x 140 x 406 mm
- Notes
-
The Fisher 301 has facilities for expansion to 4-channel operation when used in conjunction with a Fisher TX-420 and two addtional speakers. It is similar to the Fisher 401 that has AUTOSCAN® Electronic Tuning with Wireless Remote Control.
- Net weight (2.2 lb = 1 kg)
- 29.5 lb (29 lb 8 oz) / 13.393 kg
- Price in first year of sale
- 349.95 $
- Author
- Model page created by David Erali. See "Data change" for further contributors.
