• Country
• United States of America (USA)

• Manufacturer / Brand
• Fisher Radio; New York (NY)

• Year
• 1971

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 319090

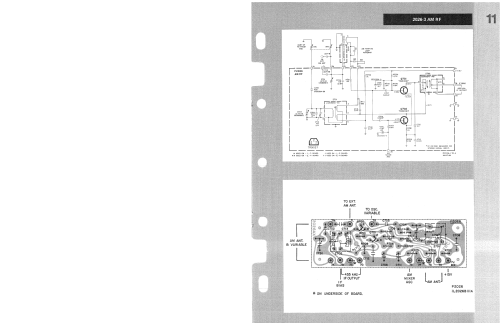

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 32

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Hi-Fi equipment

• Power type and voltage
• Alternating Current supply (AC) / 120 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 140 W (max.)

• Material
• Metal case

• from Radiomuseum.org
• Model: AM-FM Stereo Receiver 390 - Fisher Radio; New York NY

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 15.5 x 4.625 x 12.75 inch / 394 x 117 x 324 mm

• Notes

• Walnut wood grained cabinet available at extra cost.

• Price in first year of sale
• 349.95 $

• Author
• Model page created by David Erali. See "Data change" for further contributors.
