AM/FM Stereo Tuner FM-2121

• Country
• United States of America (USA)

• Manufacturer / Brand
• Fisher Radio; New York (NY)

• Year
• 1982 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 247485

• Picture

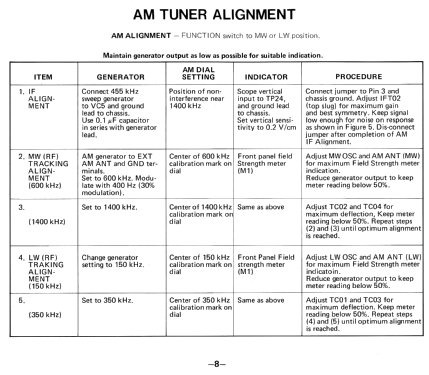

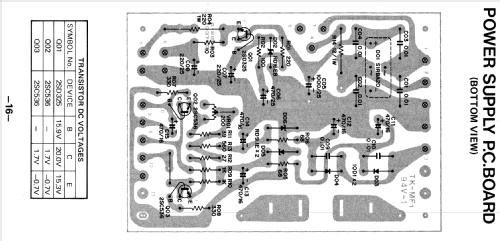

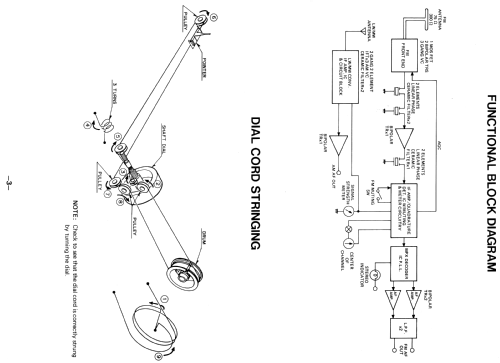

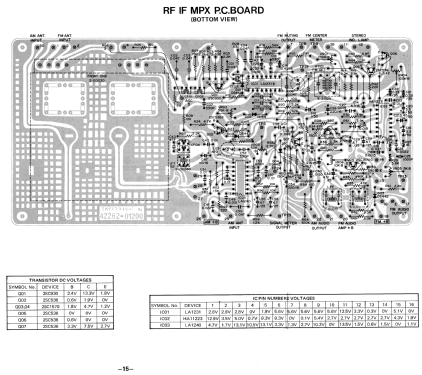

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 220 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org
• Model: AM/FM Stereo Tuner FM-2121 - Fisher Radio; New York NY

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 440 x 89.5 x 320 mm / 17.3 x 3.5 x 12.6 inch

• Notes

• Fisher Analog AM/FM Stereo Tuner Model FM 2121.
  MPX Filter
  Leistungsaufnahme 12 Watt.
  Lieferbar in Silber und in Schwarz.


• Net weight (2.2 lb = 1 kg)
• 4.6 kg / 10 lb 2.1 oz (10.132 lb)

• Mentioned in

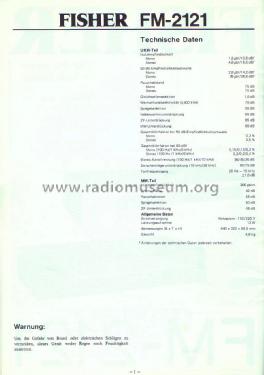

• -- Original prospect or advert

• Literature/Schematics (1)
• Photofact manual MHF-185
